|Name:||Warehouse Cargo Freight Lift Elevator||Load:||1000~5000kg|
|Type:||Warehouse Cargo Freight Lift Elevator||Application:||Cargo Lift|
|Usage:||Warehouse Cargo Freight Lift Elevator||Material:||Painted|
|Keywords:||Goods Lift||Control System:||VVVF Elevator Control System|
industrial elevator lift,
industrial freight elevator
High efficient and reliable for goods elevator, cargo elevator, freight Elevator

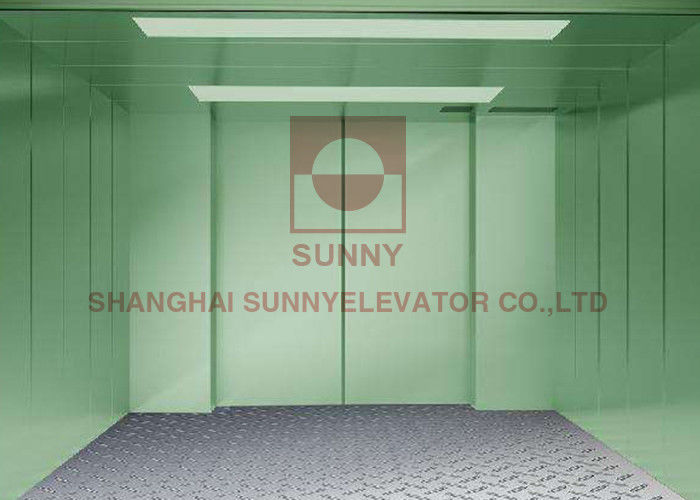

Warehouse Cargo Freight Lift Elevator 3 Tons And 5 Tons stable operation
Freight elevator parameters:
|Load(kg)||Speed(m/s)||Car size||Door size||Shaft||Pit deepth(mm)||Overhead height(mm)||Size of machine room||Opening mode|
|630||0.5||1100x1500x2200||900x2100||2000x2100||1400||4200||3000x3000x2200||2P Telescopic opening|
|3000||0.5||2200x2700x2200||1800x2100||3300x3200||1700||4500||3800x4200x2400||Center opening Four door|
High Efficient Small Freight Elevator For Goods , Cargo Freight Lift Elevator
Freight elevator set many of the world's leading technology in a body, the implementation of the elevator manufacturing and installation safety standards, and so on all the current national standards. With safe, reliable, high structural strength, durable, stable operation, open the door from large, cost-effective advantages, whether it is the factory, shopping malls or terminals and other places, can be in carring goods at the same time with a high sense of responsibility and excellent technology to provide you with reliable service. The company adopts the world's advanced VVVF driver control technology, its advanced vector control will protect you and your goods as a smooth and comfortable passenger lift, while the weight of the specifications of the world's top, is the factory, warehouse, department stores, property centers, such as the ideal choice for transport goods.
Freight elevator construction parameter:
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
