≤1.75m/S Speed Access Elevator Parts Elevator Elevator Buffer 1500-4600kg P+Q

≤1.75m/S Speed Access Elevator Parts Elevator Elevator Buffer 1500-4600kg P+Q
≤1.75m/S Speed Access Elevator Parts Elevator Elevator Buffer 1500-4600kg P+Q

Large Image :  ≤1.75m/S Speed Access Elevator Parts Elevator Elevator Buffer 1500-4600kg P+Q

Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE,ISO9001
Model Number: SN-HYF210G1
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $30~100
Packaging Details: Wooden box
Delivery Time: 7 working days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 5000 Pcs/ Month
Contact Now
Detailed Product Description
Name: Elevator Buffer Rated Speed: ≤1.75m/s
P+Q: 1500-4600kg Used: Passenger Elevator
Free Height: 603mm Business Type: Manufacturer
Product Name: Elevator Parts Transportation: Sea Transportation
Model: Elevator Buffer Type: Elevator Buffer
Highlight:

elevator buffer 1500-4600kg

,

speed access elevator parts

,

elevator buffer with warranty

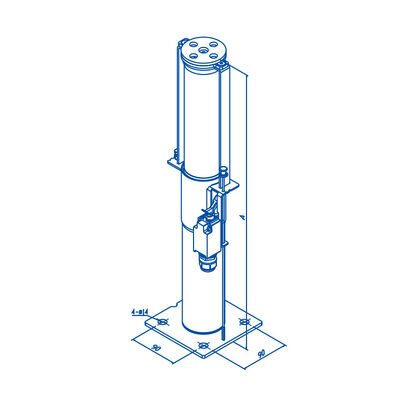

≤1.75m/S Speed Access Elevator Parts Elevator Elevator Buffer 1500-4600kg P+Q
  • Advanced spin-forming process
  • High strength and lightweight characteristics
  • G1 series can absorb stronger impact energy
  • Suitable for heavy-duty elevators
Parameter Table
Product Series Product Model

Rated Speed

(m/s)

Permitted P+Q

(kg)

Buffer stroke

(mm)

Free Height

A

Height Dimension

(mm)

Mounting Dimension

(mm)

 Certification
G 0 Series Buffer SN-HYF30GO ≤0.63 600-3500 30 126 90*90 4-Φ14 GB/CE
SN-HYF70G0 ≤1.00 600-3500 70 205 90*90 4-Φ14 GB/CE
SN-HYF80G0 ≤1.00 600-3500 80 300 90x90 4-Φ14 GB/CE
SN-HYF155G0 ≤1.50 600-3500 155 470 90*90 4-Φ14 GB/CE
SN-HYF175G0 ≤1.60 600-3500 175 520 90*90 4-Φ14 GB/CE
SN-HYF210G0 ≤1.75 600-3500 210 600 90*90 4-Φ14 GB/CE
SN-HYF275G0 ≤2.00 600-3500 275 750 90*90 4-Φ14 GB/CE
SN-HYF425G0 ≤2.50 600-3500 425 1115 90*90 4-Φ14 GB/CE
G 1 Series Buffer SN-HYF80G1 ≤1.00 1500-4600 80 303 90*90 4-Φ14 GB
SN-HYF155G1 ≤0.50 1500-4600 155 473 90*90 4-Φ14 GB
SN-HYF175G1 ≤1.60 1500-4600 175 523 90*90 4-Φ14 GB
SN-HYF210G1 ≤1.75 1500-4600 210 603 90*90 4-Φ14 GB
SN-HYF275G1 ≤2.00 1500-4600 275 763 90x90 4-Φ14 GB/CE
SN-HYF425G1 ≤2.50 1500-4600 425 1118 90*90 4-Φ14 GB/CE

≤1.75m/S Speed Access Elevator Parts Elevator Elevator Buffer 1500-4600kg P+Q 0

≤1.75m/S Speed Access Elevator Parts Elevator Elevator Buffer 1500-4600kg P+Q 1

≤1.75m/S Speed Access Elevator Parts Elevator Elevator Buffer 1500-4600kg P+Q 2

≤1.75m/S Speed Access Elevator Parts Elevator Elevator Buffer 1500-4600kg P+Q 3

≤1.75m/S Speed Access Elevator Parts Elevator Elevator Buffer 1500-4600kg P+Q 4

FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
