Ungalvanized Steel Wire Rope 6×9W+IWS, 12mm, Minimum Breaking Load 86.3 KN, For Slope Well Winching

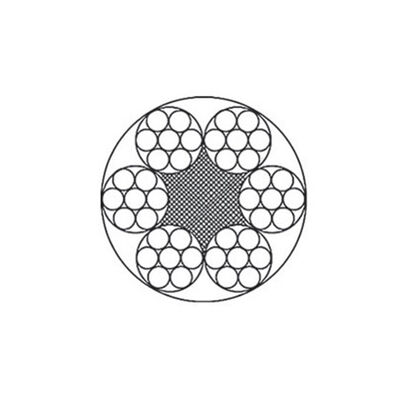

Large Image : Ungalvanized Steel Wire Rope 6×9W+IWS, 12mm, Minimum Breaking Load 86.3 KN, For Slope Well Winching

Product Details:

Place of Origin:	China
Brand Name:	SUNNY
Certification:	CE,ISO9001
Model Number:	6×7+FC

Payment & Shipping Terms:

Minimum Order Quantity:	1 meter
Price:	$0.5~5meter
Packaging Details:	Wooden box
Delivery Time:	7-15working days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	100000 meters/ Month

Contact Now

Detailed Product Description

Name:	Galvanized Steel Wire Rope	Application:	Compensating Ropes
Business Type:	Manufacturer	Transportation:	Sea Transportation
Warranty Time:	12 Months	Applicable:	Elevator Parts
Transportation Mode:	FedEx TNT DHL	Model:	Galvanized Steel Wire Rope
Type:	Galvanized Steel Wire Rope	Product:	Galvanized Steel Wire Rope
Execution Standard:	GB/T 20118-2006	Structure (Construction):	Strand
Highlight:	Ungalvanized steel wire rope 6×9W+IWS , 12mm steel wire rope for winching , Steel wire rope with 86.3 KN load

Galvanized Steel Wire Rope 6×7+FC, 8mm, High Tensile Strength For Cable Cars And Belt Conveyors

steel wire rope (ungalvanized and galvanized)

for various kind of cable car, belt cinveyer,cable way drawing and slope well winching.

1. Product Name & Standard

Product Name: Steel Wire Rope (Ungalvanized and Galvanized)
Execution Standard: GB/T 20118-2006

2. Construction & Application

Structure (Construction): Strand
Application: For various kinds of cable car, belt conveyor, cable way drawing and slope well winching.

3. Mechanical Property Table Parameters

Diameter (mm): The nominal diameter of the steel wire rope.
Approximate Weight (kg/100m): The approximate weight per 100 meters, categorized by core type (NF, SF, IWR, IWS).
Nominal Tensile Strength (MPa): The rated tensile strength levels: 1570, 1670, 1770, and 1870.
Minimum Breaking Load (KN): The minimum force required to break the rope, categorized by tensile strength and core type (FC, IWR, IWS).

4. Note

Note 1: The sum of the minimum breaking forces of individual steel wires = Minimum Breaking Load of the steel wire rope × 1.134 (for fiber core) or × 1.214 (for steel core).

Ungalvanized Steel Wire Rope 6×9W+IWS, 12mm, Minimum Breaking Load 86.3 KN, For Slope Well Winching

Product Images

Frequently Asked Questions

Are the elevator wire ropes durable?

The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won't break at the same time.

Is it dangerous for power failure suddenly during the elevator running?

If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure, elevator brakes will automatically be engaged. In addition, the power supply departments such as planned outage, prior notice are also operating.

Will us be hurt when it closed suddenly?

In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti-clamping switch, once the gate is touched, this switching action makes the elevator unable to be closed and even reopened. In addition, closing force is also available here.

How the elevator running?

Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.

Is the escalator installation complicated?

We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.

Do you have any certifications?

Yes, we do with ISO9001 / CCC / CE Certificates for our products.
