PU Material Elastic Roller Guide Shoes Elevator Repair Parts

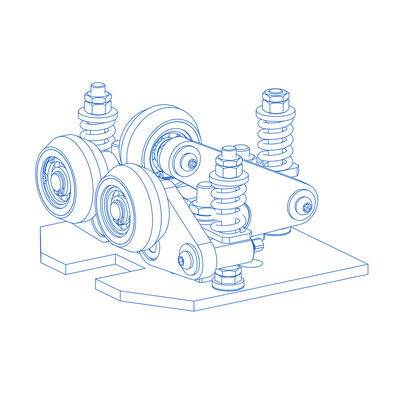

Large Image : PU Material Elastic Roller Guide Shoes Elevator Repair Parts

Product Details:

Place of Origin:	China
Brand Name:	SUNNY
Certification:	CE,ISO9001
Model Number:	SN-HNL50B

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	$50
Packaging Details:	Wooden box
Delivery Time:	7~15 days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	10000 Pcs/ Month

Contact Now

Detailed Product Description

Name:	Elastic Roller Guide Shoes	Width Of Guide Rails:	9/10mm
Diameter Of Roller:	50	Rated Speed:	0.63M/S
Applicable:	Elevator Parts	Business Type:	Manufacturer
Warranty Time:	12 Months	Packing:	Packed In Carton
Model:	Elastic Roller Guide Shoes	Type:	Elastic Roller Guide Shoes

PU Material Elastic Roller Guide Shoes Elevator Repair Parts

Recommended for residential elevators, high-end villa elevators and counterweight sides. PU roller guides are used for high-requirement lifts and logistics conveyors. Elastic guides offer better comfort, smaller size, less space occupation, and easier installation and adjustment.

Parameter Table

Product Model	Roller		Number of Springs (0/1/3)	Rated Speed (m/s)	Rated Normal Load (N)	Max Normal Load (N)	Rated Load Q(kg)(Recommended)	Rail Width (mm)	Dimensions (LengthWidthHeight mm)	Weight (kg)
Product Model	Material	Diameter of Roller(mm)	Number of Springs (0/1/3)	Rated Speed (m/s)	Rated Normal Load (N)	Max Normal Load (N)	Rated Load Q(kg)(Recommended)	Rail Width (mm)	Dimensions (LengthWidthHeight mm)	Weight (kg)
HNL50B	Rubber	50	3	0.63	200	550	400	9/10	14415594	3.3
HNL50B	PU	50	3	0.63	500	800	630	9/10	14415594	3.3
HNL70B	PU	70	3	1.75	500	1000	1250	9/10/16	141187130	4.7
HNL90B	PU	90	3	2	600	1200	1600	9/10/16	206273158	5.8
HNL105B	PU	105	3	2.5	500	1200	1600	10/16/19	216290179	6.7
HNL125B	PU	125	3	2.5	600	1200	2000	10/16/19	205318200	8.8
HNL140B	Rubber	140	3	Counterweight side 6, car side 3	500	1000	1600	10/16	214321215	9.4
HNL140B	PU	140	3	3	600	1200	1600	10/16/19	214321215	9.4
HNL150B	PU	150	3	3	600	1200	2500	10/16/19	214329220	10.2
HNL160B	Rubber	160	3	Counterweight side 7, car side 4	500	1000	1600	16/19	213340262	12.7
HNL160B	PU	160	3	3	600	1200	3000	10/16/19	213340262	12.7
HNL200B	Rubber	200	3	Counterweight side 10, car side 5	500	1000	Car side 2000 /	16/19/28.6	245416293	17.4
HNL200B	PU	200	3	3	600	1200	3500	16/19/28.6	245416293	17.4
HNL260B	Rubber	260	3	6	500	1000	2000	16/19/28.6	307548343	23.2
HNL260B	PU	260	3	4	600	1200	3500	16/19/28.6	307548343	23.2
HNL300F	Rubber	300	3	10	500	1000	2000	16/19/28.6	344620388	30.8
HNL300F	PU	300	3	5	600	1200	3500	16/19/28.6	344620388	30.8

Interface Table

Guide Shoe Model	Roller Type	A	B	C	D	E	F	G	H	I	Standard Drawing Number
HNL50B	Rubber	144	155	94	155	65	/	100	2-Φ28	50	/
HNL50B	PU	144	155	94	155	65	/	100	2-Φ28	50	/
HNL70B	PU	141	187	130	145	80	/	100	2-18×22 waist hole	70	MAADA00066
HNL90B	PU	206	273	158	200	80	80	100	4-18x30 waist hole	90	MAADB00073
HNL105B	Rubber	216	290	179	200	80	80	100	4-18x30 waist hole	105	MAADF00002
HNL125B	PU	205	312	193	180	80	80	100	4-18x30 waist hole	125	MAADN00001
HNL140B	PU	214	321	215	160	80	80	100	4-18x22 waist hole	140	MAADCO0021
HNL150B	PU	214	329	220	160	80	80	100	4-18×22 waist hole	150	MAADK00001
HNL160B	Rubber	230	340	262	230	80	80	100	4-Φ24	160	MAADD00012
HNL160B	PU	230	340	262	230	80	80	100	4-Φ24	160	/
HNL200B	Rubber	245	422	293	182	57	76	140	4-Φ17	200	MAADM00004
HNL200B	PU	245	422	293	182	57	76	140	4-Φ17	200	/
HNL260B/F	Rubber	307	536	355	188	65	160	140	4-M12	260	MAADP00001
HNL260B	PU	307	536	355	188	65	160	140	4-M12	260	/
HNL300B/F	Rubber	344	620	388	207	80	80	140	4-M12	300	/

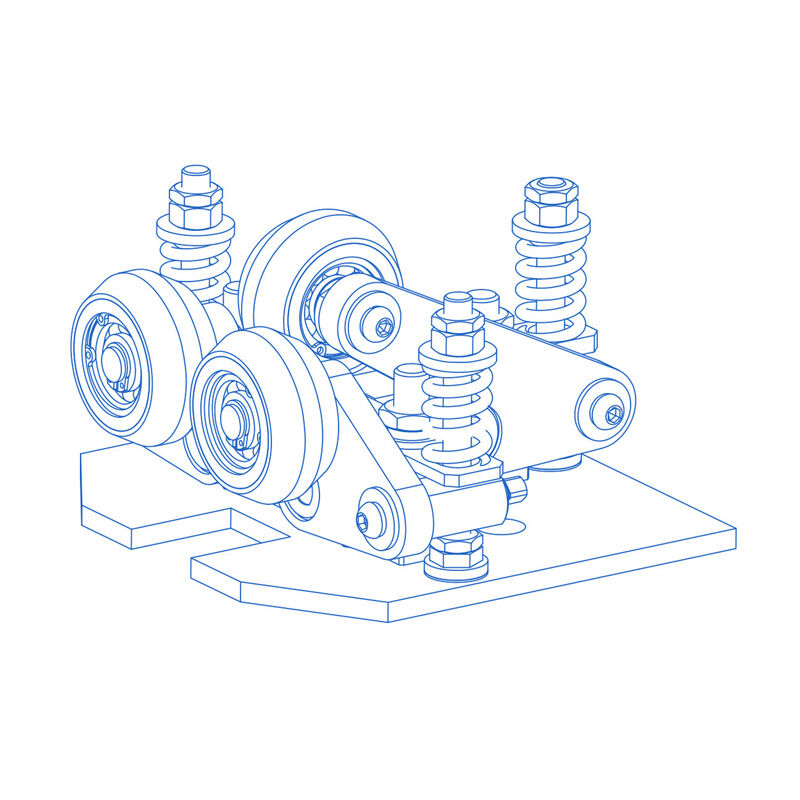

PU Material Elastic Roller Guide Shoes Elevator Repair Parts 0

PU Material Elastic Roller Guide Shoes Elevator Repair Parts 1

PU Material Elastic Roller Guide Shoes Elevator Repair Parts 2

PU Material Elastic Roller Guide Shoes Elevator Repair Parts 3

PU Material Elastic Roller Guide Shoes Elevator Repair Parts 4

FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
