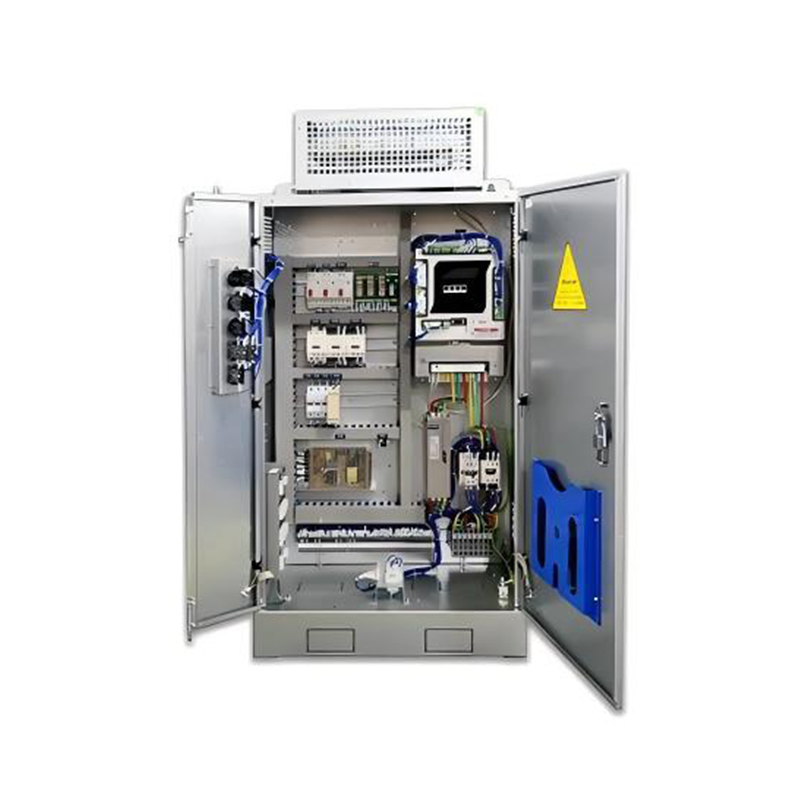

3 Phase Elevator Integrated Controller 5.5-22kW AC380V EN81-20

3 Phase Elevator Integrated Controller 5.5-22kW AC380V EN81-20
3 Phase Elevator Integrated Controller 5.5-22kW AC380V EN81-20

Large Image :  3 Phase Elevator Integrated Controller 5.5-22kW AC380V EN81-20

Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE,ISO9001
Model Number: AS380KC64M
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $90~200
Packaging Details: Wooden box
Delivery Time: 7~15 days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 10000 Pcs/ Month
Contact Now
Detailed Product Description
Name: Elevator Integrated Controller Capacity: 5.5 - 22kW
Transportation: Sea Transportation Applicable: Elevator Parts
Warranty Time: 12 Months Speed: ≤2.5m/s
Model: Elevator Integrated Controller Product: Elevator Integrated Controller
Input Voltage: AC380V±10% Output Voltage: AC380V±10%
Input Frequency: 50Hz/60Hz Output Frequency: 50Hz/60Hz
Highlight:

3 phase elevator controller

,

elevator integrated controller AC380V

,

EN81-20 elevator controller 5.5-22kW

3 Phase Epsilon-iCC Series | Intelligent Integrated Elevator Control Cabinet
Main Features
  • Designed based on EN81-20 standard and CE compliant
  • UCMP with periodic self-monitoring of braking force
  • Door lock bypass device for hall or car door lock bypassing
  • Continuous monitoring of door lock circuit to prevent unexpected shorting
  • Secondary brake protection for enhanced safety and reliability
  • Communication-controlled pit inspection for easier maintenance
Technical Specifications
Power supply 3 phase, AC380~415V, 50/60Hz
Rated power 5.5 - 22kW
Rated speed ≤2.5m/s
Motor type Synchronous/Asynchronous
Motor Brake DC110V, ≤3A
Illumination AC220V
Standard EN81-20
Environment -10℃ to 45℃
Cabinet material Galvanized sheet
Control Method Single / Duplex / Group Control
Dimension(mm) 1000×580×300
Brake resistor cabinet dimension(mm) 420×255×117 to 420×255×255
Installation Ground mounted
Product Images
3 Phase Elevator Integrated Controller 5.5-22kW AC380V EN81-20 0
3 Phase Elevator Integrated Controller 5.5-22kW AC380V EN81-20 1
3 Phase Elevator Integrated Controller 5.5-22kW AC380V EN81-20 2
3 Phase Elevator Integrated Controller 5.5-22kW AC380V EN81-20 3
Frequently Asked Questions
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration considers not only the wire rope and rated load, but also the size of the traction. The tensile strength of wire rope exceeds the weight of the lift, with a safety factor of more than four wire ropes to prevent simultaneous breakage.
2. Is it dangerous for power failure suddenly during the elevator running?
In case of power failure, the elevator will automatically stop due to electrical and mechanical safety devices. The elevator brakes will engage automatically. Power supply departments typically provide prior notice for planned outages.
3. Will us be hurt when it closed suddenly?
During closing, if someone touches the hall door, the elevator door will automatically reopen without danger. An anti-pinch switch prevents closure when obstruction is detected, and closing force is carefully regulated for safety.
4. How the elevator running?
Elevators operate with a counterweight wire rope system through traction drive, moving vertically along guide rails.
5. Is the escalator installation complicated?
Our escalators feature an integrated structure design for precision and efficiency, making installation and commissioning more straightforward and convenient.
6. Do you have any certifications?
Yes, we hold ISO9001, CCC, and CE Certificates for our products.
