0.5~1.75m/s Rated Speed Elevator Traction Machine with 450-630KG Load Capacity and 380V Rated Voltage

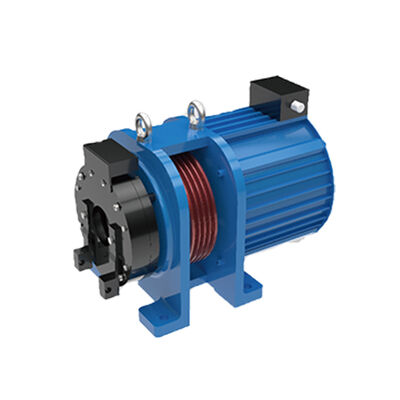

Large Image : 0.5~1.75m/s Rated Speed Elevator Traction Machine with 450-630KG Load Capacity and 380V Rated Voltage

Product Details:

Place of Origin:	China
Brand Name:	SUNNY
Certification:	CE,ISO9001
Model Number:	SN-MY06-C

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	$180~250
Packaging Details:	container
Delivery Time:	15~30 days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	5000pcs/month

Contact Now

Detailed Product Description

Load:	450-630KG	Speed:	0.5~1.75m/s
Traction Ratio:	2:1	Rated Voltage:	380
Rated Current(A):	2.2	Type:	Elevator Traction Machine
Product Name:	Elevator Traction Machine	Model:	Elevator Traction Machine
Braking Torque:	＞700

0.5~1.75m/S Rated Speed Elevator Traction Machine Spare Parts Elevator

type	Load (kg)	Speed (m/s)	Roping	Rise(m)	Motor Parameter						Brake Parameter			Sheave Parameter
					Rated power (kW)	Rated Torque (N.m)	Rated Speed (RPM)	Rated Frequency (Hz)	Rated Current (A)	Voltage (V)	Current (A)	Voltage (V)	Braking Torque (N.m)	nxd(mm)	Pitch (mm)	β	γ

MY06-450C/050P	450	0.5		≤30	1.5	170	80	16	3.3	380	2.2	DC110	＞700	4-Φ8	12	95	30
MY06-450C/100P		1		≤50	3		160	32	6.6
MY06-450C/150P		1.5		≤75	4.3		240	48	10
MY06-450C/175P		1.75		≤90	5		280	56	11.5
MY06-630C/050P	630	0.5		≤30	2	240	80	16	4.8					5-Φ8	12	95	30
MY06-630C/100P		1		≤50	4		160	32	9.5
MY06-630C/150P		1.5		≤75	6		240	48	13.5
MY06-630C/175P		1.75		≤90	7		280	56	16.2

0.5~1.75m/s Rated Speed Elevator Traction Machine with 450-630KG Load Capacity and 380V Rated Voltage 1

0.5~1.75m/s Rated Speed Elevator Traction Machine with 450-630KG Load Capacity and 380V Rated Voltage 2

0.5~1.75m/s Rated Speed Elevator Traction Machine with 450-630KG Load Capacity and 380V Rated Voltage 3

0.5~1.75m/s Rated Speed Elevator Traction Machine with 450-630KG Load Capacity and 380V Rated Voltage 4

1. Are the elevator wire ropes durable?

The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.

2. Is it dangerous for power failure suddenly during the elevator running?

If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.

3. Will us be hurt when it closed suddenly?

In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.

4. How the elevator running?

Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.

5. Is the escalator installation complicated?

We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.

6. Do you have any cerifications?

Yes, we do with ISO9001 / CCC / CE Certificates for u.
