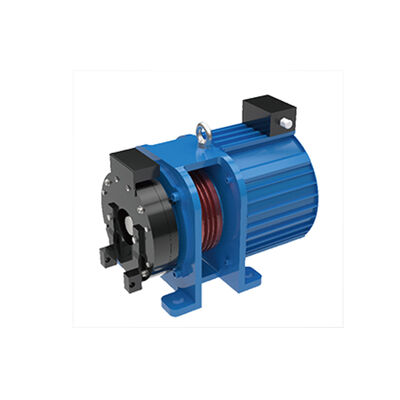

0.4~0.6m/s Speed Elevator Traction Machine with 320-450KG Load and DC110V Rated Voltage

Large Image : 0.4~0.6m/s Speed Elevator Traction Machine with 320-450KG Load and DC110V Rated Voltage

Product Details:

Place of Origin:	China
Brand Name:	SUNNY
Certification:	CE,ISO9001
Model Number:	SN-MY06-B

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	$180~250
Packaging Details:	container
Delivery Time:	15~30 days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	5000pcs/month

Contact Now

Detailed Product Description

Load:	320-450KG	Speed:	0.4~0.6m/s
Diameter:	Φ200	Traction Ratio:	2:1
Rated Voltage:	DC110	Rated Current(A):	8
Type:	Elevator Traction Machine	Product Name:	Elevator Traction Machine
Model:	Elevator Traction Machine	Rated Current:	8

0.4~0.6m/S Speed Elevator Traction Machine For Spare Parts Elevator

type

Load (kg)

Speed
(m/s)

Roping

Rise(m)

Motor Parameter

Brake Parameter

Sheave Parameter

Rated power
(kW)

Rated Torque
(N.m)

Rated Speed (RPM)

Rated Frequency
(Hz)

Voltage
380V

Voltage
220V

Current (A)

Voltage (V)

Braking Torque (N.m)

Diameter
(mm)

nxd(mm)

Pitch
(mm)

Rated Current
(A)

MY06-320B/040P

320

0.4

2:1

≤30

1.2

150

15.2

1.5

DC110

400

200

3-Φ8

MY06-400B/040P

400

MY06-450B/040P

450

MY06-320B/050P

320

0.5

≤30

1.5

MY06-400B/050P

400

MY06-450B/050P

450

MY06-320B/060P

320

0.6

≤30

1.8

114

22.8

MY06-400B/060P

400

MY06-450B/060P

450

0.4~0.6m/s Speed Elevator Traction Machine with 320-450KG Load and DC110V Rated Voltage 0

0.4~0.6m/s Speed Elevator Traction Machine with 320-450KG Load and DC110V Rated Voltage 1

0.4~0.6m/s Speed Elevator Traction Machine with 320-450KG Load and DC110V Rated Voltage 2

0.4~0.6m/s Speed Elevator Traction Machine with 320-450KG Load and DC110V Rated Voltage 3

0.4~0.6m/s Speed Elevator Traction Machine with 320-450KG Load and DC110V Rated Voltage 4

1. Are the elevator wire ropes durable?

The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.

2. Is it dangerous for power failure suddenly during the elevator running?

If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.

3. Will us be hurt when it closed suddenly?

In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.

4. How the elevator running?

Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.

5. Is the escalator installation complicated?

We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.

6. Do you have any cerifications?

Yes, we do with ISO9001 / CCC / CE Certificates for u.
