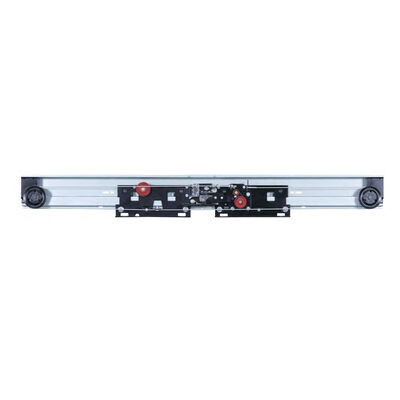

Elevator 3-Leafs Side Opening Door Operator Dor Access Elevator Parts

Large Image : Elevator 3-Leafs Side Opening Door Operator Dor Access Elevator Parts

Product Details:

Place of Origin:	China
Brand Name:	SUNNY
Certification:	CE,ISO9001
Model Number:	SN-OCM-108A-FH

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	$500~1200
Packaging Details:	container
Delivery Time:	15~30 days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	5000 pcs/month

Contact Now

Detailed Product Description

Name:	2-Leafs Center Opening Landing Door Device	Door Opening:	600~1400mm
Opening Way:	Center Opening	Packing:	Wooden Box
Application:	Lift Parts	Transportation:	Sea Transportation
Transportation Mode:	EMS Or UPS) /LCL By Sea Or Train	Door Lock Voltages:	≤ AC230V, ≤ DC110V
Model:	2-Leafs Center Opening Landing Door Device	Type:	2-Leafs Center Opening Landing Door Device
Product:	2-Leafs Center Opening Landing Door Device
Highlight:	3-leafs elevator door operator , side opening elevator door , elevator parts with warranty

2-Leafs Center Opening Landing Door Device(Fireproof Type / Adiabatic Type)

Product Features:

Safe and reliable:

The door hanger has a safety hook to prevent collision and fall off, passed 45kg soft
pendulum test, which conforms to GB/ 7588.1/2 standard requirement.
Self-closing type:

Common weight or common spring self-closing types are optional
Unlocking type:

Standard configuration: Lock on the door panel
Multiple certificates:

Door lock (OMS108) qualified by the NATIONAL ELEVATOR INSPECTION CENTER
Passed CE and EAC certifications
Fireproof door meet GB/T27903, and passed TUV, EAC, Hong Kong BS certifications
Technical specification:

Rated voltage: ≤ AC230V, ≤ DC110V；
well-adapted:

Range of application: common weight type JJ600-JJ1400,common spring type
Height range:

The standard floor height is ≥ HH+500,The minimum floor height is ≥ HH+350
Level of fire resistance rating / protection:

E120, EI120, EI60 optional . Standard configuration: IP20, Optional IP23,IPX3,IP66

Technical Data:

JJ	600	650	700	750	800	850	900	950	1000	1050	1100	1150	1200	1250	1300	1350	1400
A1L	1220	1320	1420	1520	1620	1720	1820	1920	2020	2120	2220	2320	2420	2520	2620	2720	2820
A2L	175	200	225	250	275	300	325	350	375	400	425	450	475	500	525	550	575
H1	1340	1340	1340	1340	1540	1540	1540	1540	1540	1740	1740	1740	1740	1940	1940	1940	1940

Frequently Asked Questions

Are the elevator wire ropes durable?

Our elevator wire ropes meet special provisions and requirements. The configuration considers not only wire rope and rated load, but also traction size, resulting in tensile strength greater than the lift weight. The safety factor includes at least four wire ropes to prevent simultaneous breakage.

Is it dangerous if power fails suddenly during elevator operation?

The elevator will automatically stop using electrical and mechanical safety devices. In case of power failure, elevator brakes engage automatically. Power supply departments typically provide advance notice for planned outages.

Will users be hurt if the door closes suddenly?

The door automatically restarts if touched during closing, with no danger. Anti-pinch switches prevent closure when obstruction is detected, and closing force is carefully regulated.

How does the elevator operate?

Elevators operate via counterweight wire ropes through traction drive, moving vertically on guide rails.

Is escalator installation complicated?

Our escalators feature integrated structures for precision and efficiency, designed for easier installation and commissioning.

Do you have any certifications?

Yes, we hold ISO9001, CCC, and CE Certificates for our products.
