600-1600Kg P+Q Elevator Progressive Safety Gear For Access Elevator Parts

Certification
China SHANGHAI SUNNY ELEVATOR CO.,LTD certification
China SHANGHAI SUNNY ELEVATOR CO.,LTD certification
With the arrival of the new year, I wish the company will expand its scale, develop its business, develop its business and expand its financial resources.

—— Melya

Insisting on Product Quality Management, Building Long-term Effective Mechanism of Quality. It's a pleasure to cooperate with you.

—— Yuilly

I'm Online Chat Now

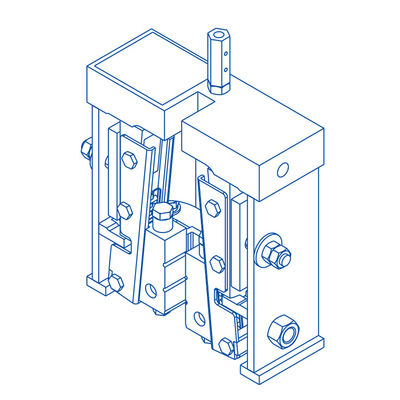

600-1600Kg P+Q Elevator Progressive Safety Gear For Access Elevator Parts

600-1600Kg P+Q Elevator Progressive Safety Gear For Access Elevator Parts

Large Image :  600-1600Kg P+Q Elevator Progressive Safety Gear For Access Elevator Parts

Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE,ISO9001
Model Number: SN-SG-HN1600
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $50
Packaging Details: Wooden box
Delivery Time: 7~15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000 Pcs/ Month
Detailed Product Description
Name: Elevator Progressive Safety Gear Width Of Guide Rails: 10/15.88/16mm
P+Q: 600-1600 Kg Rated Speed: 0.4-1.00M/S
Applicable: Elevator Parts Business Type: Manufacturer
Warranty Time: 12 Months Packing: Packed In Carton
Model: Elevator Progressive Safety Gear Type: Elevator Progressive Safety Gear





600-1600Kg P+Q Elevator Progressive Safety Gear For Access Elevator Parts





Rated Speed

(m/s)

Acting Speed of Governor

(m/s)

System Quality

Permitted P+Q

(kg)

Rail Width

(mm)

Certification Rail Status

Dimensions

(Fixed Installation) mm

0.40-1.00 0.46-1.65 600-1600 10/15.88/16 GB Dry/Lubricated 176x186x60





600-1600Kg P+Q Elevator Progressive Safety Gear For Access Elevator Parts 0



600-1600Kg P+Q Elevator Progressive Safety Gear For Access Elevator Parts 1



600-1600Kg P+Q Elevator Progressive Safety Gear For Access Elevator Parts 2



600-1600Kg P+Q Elevator Progressive Safety Gear For Access Elevator Parts 3



600-1600Kg P+Q Elevator Progressive Safety Gear For Access Elevator Parts 4



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
