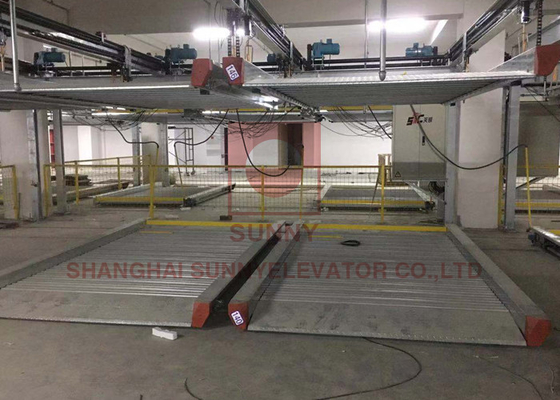

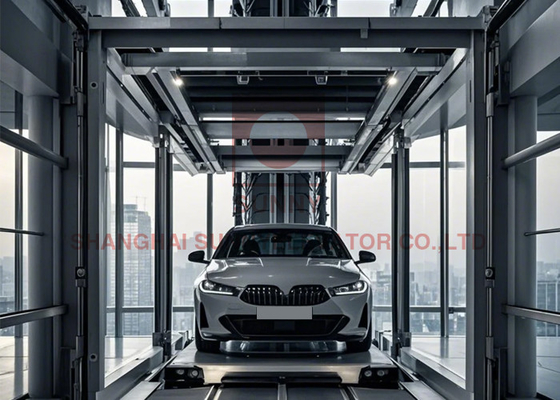

Plain-Moving Type Mechanical Parking Equipment Auto Storage Lift

Plain-Moving Type Mechanical Parking Equipment Auto Storage Lift

Large Image :  Plain-Moving Type Mechanical Parking Equipment Auto Storage Lift

Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE,ISO9001
Model Number: Plain-Moving Type Mechanical Parking Equipment
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $5000-8000
Packaging Details: container
Delivery Time: 15~30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Set/ Year
Detailed Product Description
Type: Auto Storage Lift Motor: 380V 3-Phase 5- Wire
Business Type: Manufacturer Control System: PLC
Entrance & Exit: Car Elevators Power: 380V 3-Phase 5- Wire
Voltage: 380V, 3p Interface: Button Control
Model: Auto Storage Lift Product: Auto Storage Lift
Highlight:

Plain Moving Mechanical Parking Equipment

,

Auto Storage Lift Parking Equipment

,

Auto Storage Lift Mechanical Parking Equipment

Plain-Moving Type Mechanical Parking Equipment Auto Storage Lift



Plain-Moving Type Mechanical Parking Equipment is an innovative and space-efficient solution designed to address the challenges of urban parking shortages. This system is a type of automated parking technology that maximizes parking capacity by utilizing vertical and horizontal space in a structured and compact manner. Unlike traditional parking systems, it eliminates the need for driveways and ramps, allowing more vehicles to be parked in a limited area.

The system operates by moving vehicles on a flat plane, either horizontally or vertically, using a combination of lifts, conveyors, and pallets. Drivers simply park their vehicles on a designated platform, and the system automatically transports and stores the car in an available space. Retrieval is equally seamless, with the system bringing the vehicle back to the entry point upon request.

Plain-Moving Type Mechanical Parking Equipment is highly versatile and can be customized to fit various building layouts, making it suitable for residential, commercial, and public parking facilities. It enhances safety by reducing human error and minimizing the risk of accidents. Additionally, it improves convenience and efficiency, as drivers no longer need to navigate tight spaces or search for parking spots.

This technology is an eco-friendly solution, as it reduces the need for large parking structures and promotes sustainable urban development. By optimizing space and streamlining parking operations, Plain-Moving Type Mechanical Parking Equipment is transforming the way cities manage parking demands.



Car Type Car Type D Type T Type
Car size(mm) Lenght*Width*Height
L5000*W1850*H1550 L5300*W1900*H1550
Car Weight ≤2000kg ≤2350kg

Space

Demand

Motor Lifting mator 18.5-30kw
Transverse motor 2.2-3.0kw
Car board conveying motor 1.5kw*2
Car board grab motor 0.4-0.75kw
Specification Speed Lifting speed ≤60m/min
Transverse speed ≤90m/min
Car board conveying speed ≤32m/min
Car board grab speed ≤8m/min
Operation Model Touch Screen
Control System PLC
Power Demand 380V 3- -Phase 5-Wire
Entrance & Exit Auto Door



Plain-Moving Type Mechanical Parking Equipment Auto Storage Lift 0

Plain-Moving Type Mechanical Parking Equipment Auto Storage Lift 1



Plain-Moving Type Mechanical Parking Equipment Auto Storage Lift 2



Plain-Moving Type Mechanical Parking Equipment Auto Storage Lift 3



Plain-Moving Type Mechanical Parking Equipment Auto Storage Lift 4



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
