10 Year Lifespan Guaranteed For Dumb Waiter Elevator With Galvanized Steel Structure

10 Year Lifespan Guaranteed For Dumb Waiter Elevator With Galvanized Steel Structure
10 Year Lifespan Guaranteed For Dumb Waiter Elevator With Galvanized Steel Structure

Large Image :  10 Year Lifespan Guaranteed For Dumb Waiter Elevator With Galvanized Steel Structure

Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE,ISO9001
Model Number: Dumb Waiter Elevator
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $3000~7000
Packaging Details: container
Delivery Time: 15~30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Set/ Year
Detailed Product Description
Name: Dumb Waiter Elevator Load: 100~250kg
Use: Residential Elevators Speed: 0.28 M/S
Material: Stainless Steel Usage: Dumbwaiter Elevator
Keywords: Dumbwaiter Car Wall: Mirror Etching Stainless Steel
Model: Dumb Waiter Elevator Product: Dumb Waiter Elevator
Drive Type: AC Elevator Type: Goods Elevators



10 Year Lifespan Guaranteed For Dumb Waiter Elevator With Galvanized Steel Structure

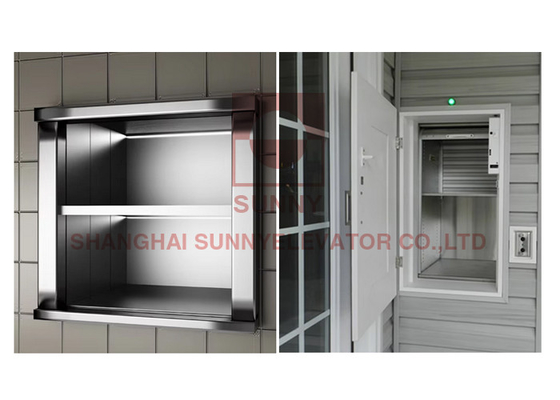

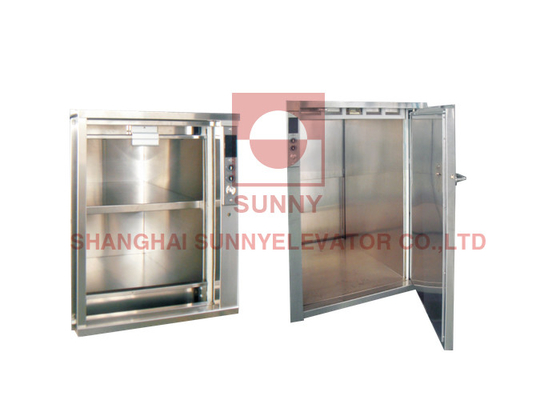

Dumb Waiter Elevator
Dumb Waiter is normally installed in door for fast delivery of food. The load capacity is normall 50-300kg, we can also customize it according to your need.
The structure part are all galvanized steel and cabin stainless steel type, the lift of whole structure is at least 10 years.

Load(kg)
Speed(m/s)
Car dimension(mm)
Doorway width(mm)
Hoistway dimension(mm)
100

0.28
700*700*1200
700*1200
1450*1000
200
800*800*1200
800*1200
1550*1100
250
1000*1000*1200
800*1200
1700*1400







10 Year Lifespan Guaranteed For Dumb Waiter Elevator With Galvanized Steel Structure 0



10 Year Lifespan Guaranteed For Dumb Waiter Elevator With Galvanized Steel Structure 1

10 Year Lifespan Guaranteed For Dumb Waiter Elevator With Galvanized Steel Structure 2



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
