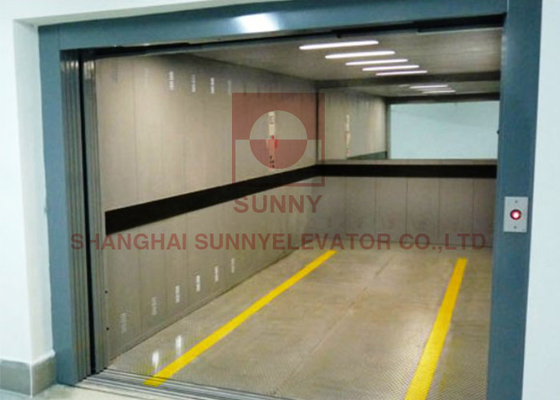

Center Open 4 Panel Safe 3000kg Large Space Auto Car Elevator For Trading Center

Center Open 4 Panel Safe 3000kg Large Space Auto Car Elevator For Trading Center
Center Open 4 Panel Safe 3000kg Large Space Auto Car Elevator For Trading Center

Large Image :  Center Open 4 Panel Safe 3000kg Large Space Auto Car Elevator For Trading Center

Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE,ISO9001
Model Number: Auto Car Elevator
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $7000-12000
Packaging Details: container
Delivery Time: 15~30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Set/ Year
Detailed Product Description
Name: Auto Car Elevator Load: 1000~5000kg
Speed: 0.25~0.63m/S Door Open Size: 2400~2600mm
Material: Stainless Steel Application: Indoor/outdoor
Car Floor: PVC Product: Auto Car Elevator
Door Open Way: Center Open 4 Panel Traction Ratio: 4:1
Product Name: Auto Car Elevator
High Light:

Trading Center Auto Car Elevator

,

3000kg Auto Car Elevator

,

Large Space Auto Car Elevator



Center Open 4 Panel Safe 3000kg Large Space Auto Car Elevator For Trading Center





One Cabin door:
Capacity Speed Cabin Size Shaft Size Min Floor H Max Travel Min Floor H
DL V Width Depth Open Width Depth Pit Min D Max R Min D
(kg) (m/s) (mm) (mm) (mm) (mm) (mm) (mm) (m) (m) (m)
1000 0.5 1500 1500 Side open: 1200*2100 2400 2100 4500 2500 25 2700
0.63 30
1600 0.5 1700 2000 Side open: 1300*2100 2700 2600 4500 2500 25
0.63 30
2000 0.5 2000 2000 Side open/ 4 panels center open: 1500*2100 3000 2700 4500 2500 25
0.63 30
3000 0.5 2000 2800 Side open/ 4 panels center open: 1600*2100 3100 3400 4800 3000 25
0.63 30
5000 0.25 2400 3700 4 panels center open: 1800*2100 3600 4300 4800 3000 16
0.5 25


Car elevator construction parameter:

Center Open 4 Panel Safe 3000kg Large Space Auto Car Elevator For Trading Center 0

Center Open 4 Panel Safe 3000kg Large Space Auto Car Elevator For Trading Center 1



Center Open 4 Panel Safe 3000kg Large Space Auto Car Elevator For Trading Center 2Center Open 4 Panel Safe 3000kg Large Space Auto Car Elevator For Trading Center 3



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
