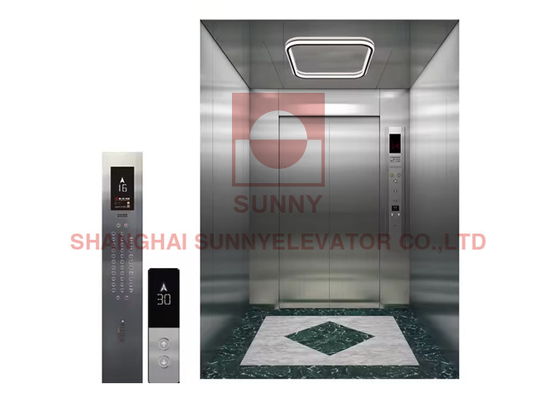

800~1600kg Complete Hospital Elevator Medical Bed Elevator/ Patient Medical Elevator Lift

800~1600kg Complete Hospital Elevator Medical Bed Elevator/ Patient Medical Elevator Lift
800~1600kg Complete Hospital Elevator Medical Bed Elevator/ Patient Medical Elevator Lift 800~1600kg Complete Hospital Elevator Medical Bed Elevator/ Patient Medical Elevator Lift

Large Image :  800~1600kg Complete Hospital Elevator Medical Bed Elevator/ Patient Medical Elevator Lift

Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE,ISO9001
Model Number: Hospital Elevator
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $7000-12000
Packaging Details: container
Delivery Time: 15~30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Set/ Year
Detailed Product Description
Name: Hospital Elevator Load: 800~1600kg
Speed: 1.0~3.0m/s Warranty: 1 Year
Material: Stainless Steel Keywords: Hospital Elevator
Elevator Type: Hospital Elevator Application: Hospital
Machine Room: With\Without Machine Room Handrail: Stainless Steel Handrail
High Light:

1600kg Hospital Elevator

,

Patient Medical Hospital Elevator

,

800kg Complete Hospital Elevator



Complete Hospital Elevator Medical Bed Elevator/ Patient Medical Elevator Lift

· Group control for 2-8 elevators

· Independent service for passengers

· Automatic leveling against power failure

(with storage battery)

· Fireman operation

· Automatic return to base station in fire alarm

· Automatic return when door opening &

closing hindered

· Mischief prevention function

· Collective control operation

· Delay closing operation

· Attendant operation

· Collective control of lighting and fans

Mid-split Technical parameters
Elevator model GSTB1600/1.0-3.0-JXW(VVVF)
Shaft size 2450mmx2900mm Min floor distance 2900mm
Innermet dimension 1400mmx2400mm Compartment dimension 1450mmx2565mm
Door openingmode Mid-split Door opening size M1100mmx2100mm

Merge control Two-speed sliding door Technical parameters
Elevator model GSTB1600/1.0-3.0-JXW(VVVF)
Shaft size 2450mmx2900mm Min floor distance 2900mm
Innermet dimension 1400mmx2400mm Compartment dimension 1450mmx2601mm
Door openingmode Merge control Two-speed sliding door Door opening size M1100mmx2100mm

Left hand model Technical parameters
Elevator model GSTB1600/1.0-3.0-JXW(VVVF)
Shaft size 2450mmx2900mm Min floor distance 2900mm
Innermet dimension 1400mmx2400mm Compartment dimension 1450mmx2601mm
Door openingmode Left hand model Door opening size M1100mmx2100mm

Right hand model Technical parameters
Elevator model GSTB1600/1.0-3.0-JXW(VVVF)
Shaft size 2450mmx2900mm Min floor distance 2900mm
Innermet dimension 1400mmx2400mm Compartment dimension 1450mmx2601mm
Door openingmode Right hand model Door opening size M1100mmx2100mm

Capacity(kg) Rate speed(m/s) Top floor heardroom height OH(mm) Pit heardroom height OH(mm)
800~1600 1.0 4500 1500
1.6 4600 1600
1.75 4700 1700
2.0 4800 1800
2.5 5000 2200
3.0 5400 2500



Bed Elevator construction layout drawing

800~1600kg Complete Hospital Elevator Medical Bed Elevator/ Patient Medical Elevator Lift 0



800~1600kg Complete Hospital Elevator Medical Bed Elevator/ Patient Medical Elevator Lift 1



800~1600kg Complete Hospital Elevator Medical Bed Elevator/ Patient Medical Elevator Lift 2



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
