Product Details:
Payment & Shipping Terms:
|
Type: | Four Post Car Parking Lift | Load: | 2700kg |
---|---|---|---|
Lighting Height: | 1880mm | Keywords: | Four Post Car Parking Lift |
Lock Release: | Pneumatic Unlock | Power Supply: | 220V/380V |
Warranty: | 12 Months After Shipping | Certification: | CE,ISO9001 |
Model: | Four Post Car Parking Lift | Product: | Four Post Car Parking Lift |
Highlight: | Hydraulic Four Post Car Parking Lift,2700kg Two Parking Space Hydraulic Lift,Hydraulic Driven Auto Parking Lift |

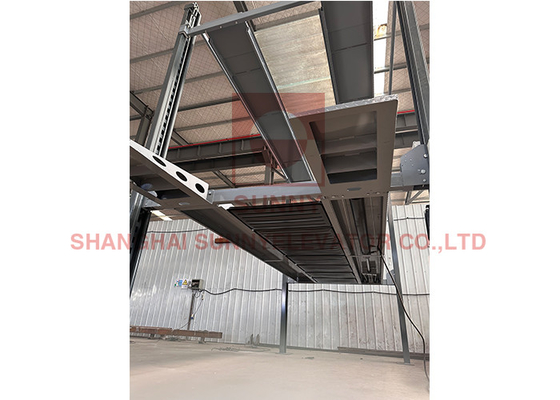

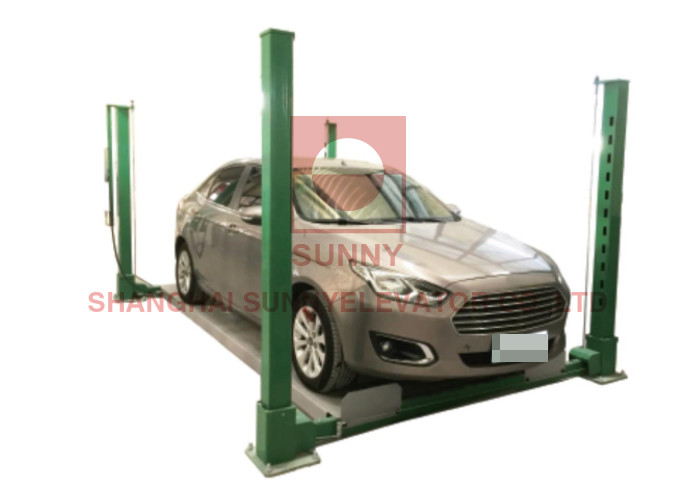

Hydraulic Driven Four Post Car Parking Lift With Two Parking Space
Hydraulic driven, steel rope lifting system.Single stage dual-cylinder lifting.
High polymer polyethylene slide blocks, wear-resistance.Platform runway & ramps made of diamond steel plates.Movable galvanized steel plates in the middle.
Anti-falling mechanical locks in four posts at different heights to ensuresafety.
Steel parts are sandblasted then anti-corrosion primer painted and topfinish color coated.
Product parameters | ||||
Lifting Capacity | 2700kg | 2700kg | 3600kg | 3600kg |
Max Lifhting Height | 1880mm | 2000mm | 1880mm | 2000mm |
Drive through | 1900mm | |||
Middle of runway | Moveable galvanized steel plates | |||
Lock Release | Manual Unlock | |||
Installion Space | 5200x3000x3300mm | |||
Rise/Drop Time | 70S/60S | |||
Power Supply/Motor Capacity | 220V/380V,50Hz/60Hz,1 Ph/3Ph,2.2kw |
FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
