VVVF Control System Car Elevator Stainless Steel Cargo Lift 0.25 - 0.5m/S

VVVF Control System Car Elevator Stainless Steel Cargo Lift 0.25 - 0.5m/S
VVVF Control System Car Elevator Stainless Steel Cargo Lift 0.25 - 0.5m/S VVVF Control System Car Elevator Stainless Steel Cargo Lift 0.25 - 0.5m/S

Large Image :  VVVF Control System Car Elevator Stainless Steel Cargo Lift 0.25 - 0.5m/S

Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE,ISO9001
Model Number: Car Elevator
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $7000-12000
Packaging Details: container
Delivery Time: 15~30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Set/ Year
Detailed Product Description
Name: Car Elevator Load: 3000~5000kg
Feature: Large Space Speed: 0.25~0.5m/S
Model: Car Lift Elevator Pit Depth: 1800mm
Type: Car Elevator Material: Stainless Steel
Product: Car Elevator
High Light:

VVVF Control System Car Elevator

,

0.5m/S Car Lift

,

Stainless Steel Cargo Elevators

Car Elevator Used Cargo Elevators For Japan Technology And VVVF Control System



A Love Harbor For Your Beloved Car

Car elevator applies the well-developed miccro-computer signal control system and accurate VVVF speed regulation control tech.It effectively avoids the shaking car due to unevenly encountered force.It hhas no

running noise.It brings about the more comfortable travel and more accurate leveing.The broad;bright and unique car design,humane and considerate functional setting are more convenient in operating car elevator,more seccure in entry/exit.



Load


Speed



Cabin size



Door opening size



Shaft size



Machine room size



Overhead height



Pit depth

kg
mm
mm
mm
mm
mm
mm
mm


3000
0.25



2600*5400


2400*2400 Central opening
(four panels)

4200*6060


4800*7000

5000

1800
0.5

0.5

4300*6060

(Machine roomless)
5300
(Machine roomless)
2000
(Machine roomless)


5000


0.5


3200*6400

2500*2400
Central opening
(four panels)


4700*7060


5000*7500

5500

2200

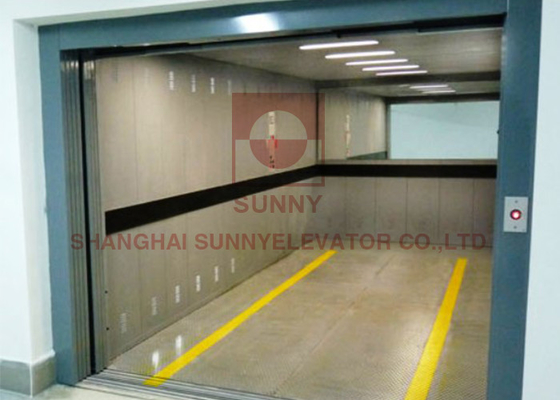

Car elevator construction parameter:

VVVF Control System Car Elevator Stainless Steel Cargo Lift 0.25 - 0.5m/S 0



VVVF Control System Car Elevator Stainless Steel Cargo Lift 0.25 - 0.5m/S 1



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
