Product Details:
Payment & Shipping Terms:
|
| Name: | Automatic Escalator Walkway | Speed: | 0.5m/s |
|---|---|---|---|
| Angle: | 30° | Keywords: | Moving Walk |
| Usage: | Shopping Mall/Subway/Airport | Business Type: | Manufacturer |
| Control System: | VVVF Drive | Material: | Stainless Steel |
| Model: | Automatic Escalator Walkway | Type: | Automatic Escalator Walkway |
| High Light: | Aluminium Handrail automatic walkway,12 degree automatic walkway,12 degree escalator walkway |
||

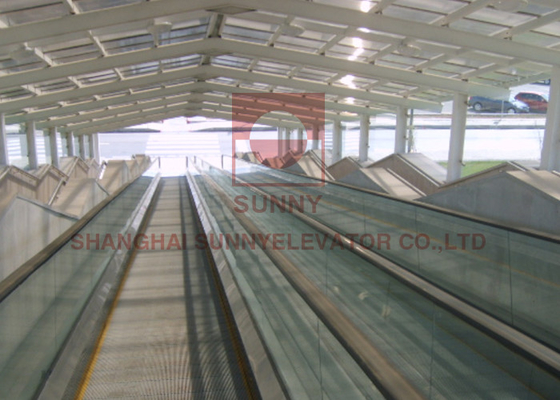

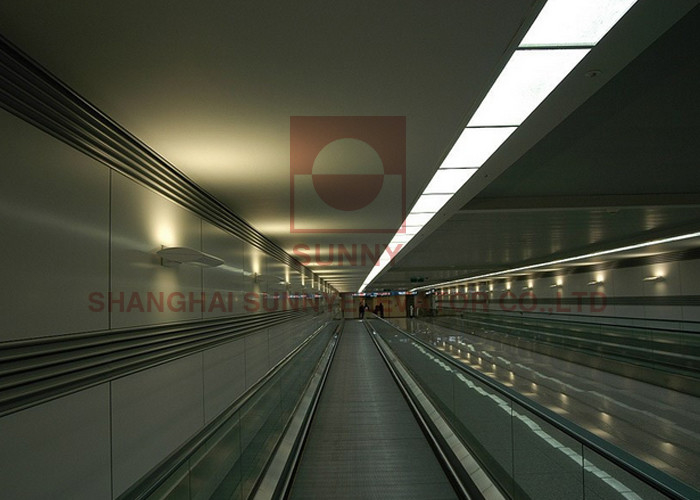

Outdoor Moving Walk With Aluminium Handrail Glass Moving Walkway
Moving walkway
Angle : 0-6 degree, 10-12 degree
Step width: 600mm, 800mm, 1000mm
Main power: 380V/50Hz/3P
Speed: 0.5m/s
Balustrade: Tempered glass (10mm)
Handrail bracket: Stainless steel
Handrail: Black
Balustrade height: 900 mm
Inner & oter decking: Hairline Stainless steel
Skirting: Wear resistant coating steel sheet
Step: Stainless steel
Landing plate: Stainless steel
illumination: Lighting under upper & lower landing steps
Indicator: Failure code indicator on control cabinet
Operation: Emergency stop / Key swith / Inspection operation
| No | Functions | No | Functions |
| 1 | Broken drive-chain device | 10 | Step trap safety device |
| 2 | Power supply fault,phase failure protection | 11 | Motor overpower protection |
| 3 | Broken step chain device | 12 | Overspeed governor switch |
| 4 | Handrail exit-entry guard | 13 | Safety grounding protection |
| 5 | Working brake | 14 | Break-down display function |
| 6 | Emergency stop button | 15 | Stap loss safety device |
| 7 | Direction reversal device | 16 | Handrail speed protection |
| 8 | Comb safety device | 17 | Step speed monitor |
| 9 | Skirt safety device | 18 | Inspection panel monitor |
FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
