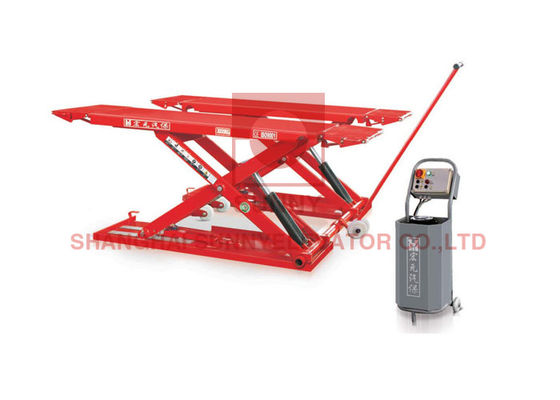

Rising Fling Mid Position Electric Hydraulic Car Scissor Lift With Safety Alarm Device

Rising Fling  Mid Position Electric Hydraulic Car Scissor Lift With Safety Alarm Device
Rising Fling  Mid Position Electric Hydraulic Car Scissor Lift With Safety Alarm Device

Large Image :  Rising Fling Mid Position Electric Hydraulic Car Scissor Lift With Safety Alarm Device

Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE,ISO9001
Model Number: ULTRA THIN SCISSOR LIFT
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $5000~8000
Packaging Details: container
Delivery Time: 15~30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Set/ Year
Detailed Product Description
Type: Scissor Lift Load: 3000kg
Lighting Height: 1000mm Keywords: MID-POSTION SCISSOR LIFT
Motor Power: 2.2kw-380v Warranty: 12 Months After Shipping
Certification: CE,ISO9001 Weight: 580kg
Model: Scissor Lift Product: Scissor Lift
Highlight:

Mid Position car scissor lift

,

Rising Fling electric hydraulic scissor lift

,

Rising Fling car scissor lift

Mid-Position Scissor Lift With Rising And Fling Have Safety Alarm Device



CHARACTERISTICS

1.The iting patorm extension, according to the diferent models of the vehicle support the ramp and extension, flexible use, cover small space.

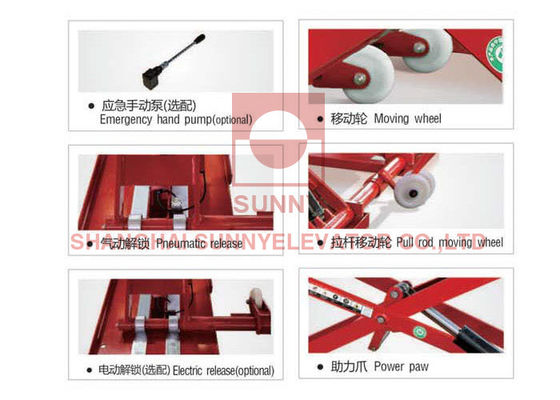

2.Pneumatic release, safe and reliable.
3.The itial height is lower (110mm), have slidig ramp and extension.
4.Adopt axis drived, synchronization performance good, liting capacity well
5.Hydraulic system adopted imported electromagnetic valve and seal components, ensure the stability and working ife of themachine.
6.When the power supply is of,研and vehicle can be down by manual.
7.Rising and fling have safety alarm device.
8.0il cylinder with upper retum oi, prevent oil cylinder rust.





TECHNICAL SPECIFICATIONS



Lifting Capacity 3000kg
Lighting Height 1850mm
Min.Height 105mm
Lifting Time 50s
Length of the Platform 1400mm
Platform Width 530mm
Motor Power 2.2kw-380v or 2.2kw-220v
Oil Pressure Rating 24MPa
Air Pressure 0.6-0.8MPa
Weight 580kg



DIMENSIONS(mm)



Rising Fling  Mid Position Electric Hydraulic Car Scissor Lift With Safety Alarm Device 0



Rising Fling  Mid Position Electric Hydraulic Car Scissor Lift With Safety Alarm Device 1



Rising Fling  Mid Position Electric Hydraulic Car Scissor Lift With Safety Alarm Device 2



Rising Fling  Mid Position Electric Hydraulic Car Scissor Lift With Safety Alarm Device 3



Rising Fling  Mid Position Electric Hydraulic Car Scissor Lift With Safety Alarm Device 4



Rising Fling  Mid Position Electric Hydraulic Car Scissor Lift With Safety Alarm Device 5



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
