400kg Load VVVF Inverter Manual Door Residential Home Elevators For Home

400kg Load VVVF Inverter Manual Door Residential Home Elevators For Home
400kg Load VVVF Inverter Manual Door Residential Home Elevators For Home 400kg Load VVVF Inverter Manual Door Residential Home Elevators For Home

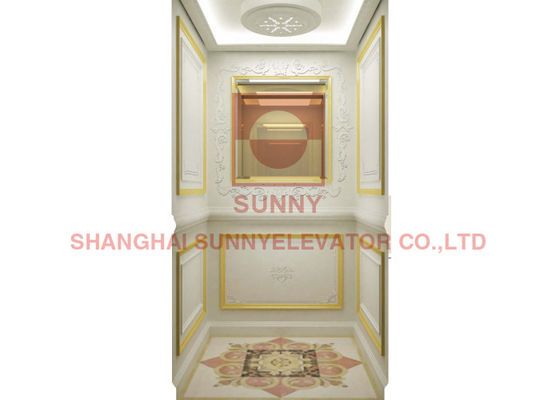

Large Image :  400kg Load VVVF Inverter Manual Door Residential Home Elevators For Home

Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE,ISO9001
Model Number: home lift
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $7000-12000
Packaging Details: container
Delivery Time: 15~30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Set/ Year
Detailed Product Description
Name: Residential Home Elevators Load: 250-400kg
Speed: 0.25-0.4m/S Application: Apartment, Villa, Private House
Power Supply: Three Phase AC380 50Hz Warranty: 12 Months
Elevator Type: Residential Home Elevators Product Name: Lifts For Home Use Small Residential Elevator
Model: Residential Home Elevators
High Light:

400kg Load Passenger Lift Elevator

,

VVVF Inverter Passenger Lift Elevator

,

0.4m/S Passenger Lift Elevator



400kg Energy Saving Manual Door Villa Passenger Lift Elevator For Home



Control System
Compared with a traditional geared traction machine, the permanent magnetic synchronous drive saves up to 60% in energy consumption. Lubricant-free motor keeps environmental-friendly.
VVVF drive ensures Sanyo elevator operate more smoothly. Nice noise control brings passenger peaceful riding experience.



Application Villa
Control system Traction machine type:VVVF inverter,microcomputer control
Hydraulic type:PLC
Power supply Single phase AC220V 50/60Hz
Three phase AC380 50Hz
Door operator VVVF door operator
Rated loads 250kg,320kg,400kg
Rated speed Traction type 0.25-0.4m/s Hydraulic type 0.2-0.3m/s
Max.Travel 15M
Max.Landings 6Floors



400kg Load VVVF Inverter Manual Door Residential Home Elevators For Home 0

FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
