0.4m/S Speed Residential Home Elevator Customized Lift With One Stop Service

Certification
China SHANGHAI SUNNY ELEVATOR CO.,LTD certification
China SHANGHAI SUNNY ELEVATOR CO.,LTD certification
With the arrival of the new year, I wish the company will expand its scale, develop its business, develop its business and expand its financial resources.

—— Melya

Insisting on Product Quality Management, Building Long-term Effective Mechanism of Quality. It's a pleasure to cooperate with you.

—— Yuilly

I'm Online Chat Now

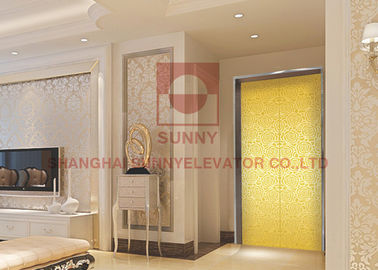

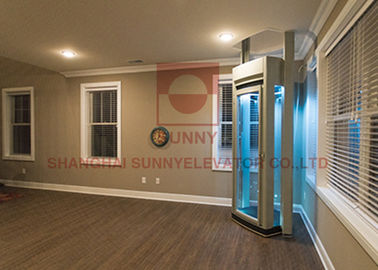

0.4m/S Speed Residential Home Elevator Customized Lift With One Stop Service

0.4m/S Speed Residential Home Elevator Customized Lift With One Stop Service
0.4m/S Speed Residential Home Elevator Customized Lift With One Stop Service

Large Image :  0.4m/S Speed Residential Home Elevator Customized Lift With One Stop Service

Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE,ISO9001
Model Number: Home Elevator
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $7000~12000
Packaging Details: container
Delivery Time: 15~30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Set/ Year
Detailed Product Description
Name: Home Elevator Speed: 0.4m/s
Load: 250~400kg Pit: 1100mm
Application: Home Usage Warranty: 12 Months
Drive Type: AC Product Name: Home Elevator
Type: Home Elevator
High Light:

small house elevators

,

in home elevators and lifts

High Quantity Residential Home Elevator Customized Lift with One Stop Service



Home car design



Flexible host installation
According to the actual situation of the site, can choose host installation mode, host guide rail installation and host beam installation. Minimal installation, free innovation.


The gantry frame is more stable
Gantry frame structure, double stable structure, make the cage run more comfortable and stable.



Load

(kg)

Speed

(m/s)

Size of entrance

(mm)

Size of car(mm) Size of hoistway(mm) Overhead height(mm)

Pit

(mm)

Max travelling

height(m)

250 0.4 700*2000 900*1000*2100 1650*1400

3500

(3150)

1100

(300)

12
320 800*2000 1100*1100*2100 1850*1500
400 800*2000 1100*1300*2100 1850*1700



Portal frame house hold elevator construction

0.4m/S Speed Residential Home Elevator Customized Lift With One Stop Service 0

0.4m/S Speed Residential Home Elevator Customized Lift With One Stop Service 1



0.4m/S Speed Residential Home Elevator Customized Lift With One Stop Service 2



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
