Product Details:
Payment & Shipping Terms:
|
| Name: | 30 Degree Escalator | Speed: | 0.5m/s |
|---|---|---|---|
| Application: | Shopping Malls, Office | Stair Width: | 600mm |
| Warranty: | 12 Months After Shipping | Angle: | 30 Degree |
| Usage: | Shopping Mall | Type: | Shopping Mall Escalator |
| Model: | Shopping Mall Escalator | Product: | Shopping Mall Escalator |
| High Light: | moving walk escalator,passenger escalator |
||
30 Degree Auto Start Indoor / Outdoor Escalator with Vvvf

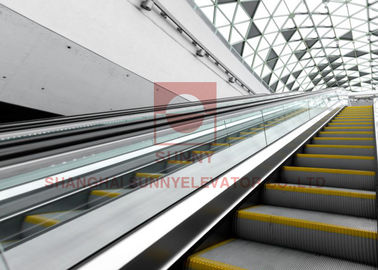

Outdoor Shopping Mall Escalator Airport Moving Walkway With VVVF Auto Start Stop
Safety brake
Can effectivel prevent the occurrence of accidents, with high reliability and durability. The braking torque can be adjusted automatically according to the running direction, and the brake is relaxed, so that the passengers can stop and stop at the the emergency stop.
Arm with entry safety brush
Supporting the safety protection contact force can immediately stop the eacalator running, so that the card into the risk fell to the lowest effective prevent the children will reach extends into handrail entry premises subject to damage.
Yellow border
The use of flame retardant, special material,eye-catching, wear-resistant, long service life, the minors are more safety tips.
****************************************
For detail information, please contact us.
****************************************
| Lifting height H(mm) | Speed V(m/s) | Stair width A(mm) | Angle of Inclination(0°) | Level stair | Power of driving motor(kw) | Center distance of handrail B(mm) | Width of handrail shape C(mm) | Width of pit D(mm) | Transport dimensions | |
| h | I | |||||||||
| 3000≤H≤6000 | 0.5 | 600 | 30 | 2(3) | 5.5/8 | 838 | 1200 | ≥1200 | ≤2870 | ≤16860 |
| 6000<H≤10000 | 3 | 11 | Transported by two stages | |||||||
| 3000≤H≤5600 | 0.5 | 800 | 30 | 2(3) | 8 | 1038 | 1400 | ≥1400 | ≤2870 | ≤16860 |
| 5600<H≤7500 | 2(3) | 11 | Transported by two stages | |||||||
| 7500<H≤10000 | 3 | 15 | ||||||||
| 3000<H≤4600 | 0.5 | 1000 | 30 | 2(3) | 8 | 1238 | 1660 | ≥1660 | ≤2870 | ≤16860 |
| 4600≤H≤5600 | 2(3) | 11 | ||||||||
| 5600<H≤7500 | 3 | 15 | Transported by two stages | |||||||
| 7500<H≤10000 | 3 | 2x11 | ||||||||
30° Escalator Construction
FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
Contact Person: Mr. Wei CHEN
Tel: +86-13661864321
