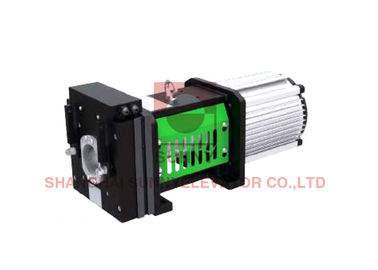

Load 400~480kg Gearless Traction Machine For Machine Room Less Elevator Parts

Load 400~480kg Gearless Traction Machine For Machine Room Less Elevator Parts
Load 400~480kg Gearless Traction Machine For Machine Room Less Elevator Parts Load 400~480kg Gearless Traction Machine For Machine Room Less Elevator Parts

Large Image :  Load 400~480kg Gearless Traction Machine For Machine Room Less Elevator Parts

Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE,ISO9001
Model Number: SN-DX-400F
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $500~1200
Packaging Details: container
Delivery Time: 15~30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000pcs/month
Detailed Product Description
Name: Gearless Traction Machine Load: 400/480kg
Brake: DC110V 2*0.6A Max.static Load: 2000kg
Ransportation: Sea Delivery Category: Elevator Parts
Warranty Time: 12 Months Elevator Parts: Traction System
Model: Gearless Traction Machine Type: Gearless Traction Machine
Highlight:

passenger lift parts

,

elevator car parts



Load 400~480kg Elevator Gearless Traction Machine For Machine room less traction elevator


Load 400/480kg
Voltage 220/380v
Suspension 2:1
Center height 112mm
Weight 72/77kg
Max.static load 2000kg
Brake DC110V 2*0.6A



General data kg m/s V mm P n kW r/min N.m Hz V A S5
Load

Lift

speed

Phase

voltage

Sheave

dia

Poles

Traction

belt qty

Rated

power

Rated

speed

Rated

torque

Frequ

ency

Rated

Voltage

Rated

Current

Working

system

SN-DX-400-4-12F 400 0.4 1/220 86 10 2 1.1 178 59 14.8 154 7.2 20%
SN-DX-400-4-34F 400 0.4 3/380 86 10 2 1.1 178 59 14.8 235 4.7 20%
SN-DX-400-6.3-12F 400 0.63 1/220 86 10 2 1.7 280 58 23.3 159 9.2 40%
SN-DX-400-6.3-34F 400 0.63 3/380 86 10 2 1.7 280 58 23.3 325 4.5 40%
SN-DX-400-10-12F 400 1.0 1/220 86 10 2 2.7 444 58 37 142 14.9 40%
SN-DX-400-10-34F 400 1.0 3/380 86 10 2 2.7 444 58 37 324 6.5 40%
SN-DX-480-4-12F 480 0.4 1/220 86 10 2 1.27 178 68 14.8 147 8.3 20%
SN-DX-480-4-34F 480 0.4 3/380 86 10 2 1.27 178 68 14.8 315 3.9 20%
SN-DX-480-6.3-12F 480 0.63 1/220 86 10 2 2.0 280 68 23.3 139 12.1 40%
SN-DX-480-6.3-34F 480 0.633 3/380 86 10 2 2.0 280 68 23.3 329 5.1 40%
SN-DX-480-10-12F 480 1.0 1/220 86 10 2 3.2 444 69 37 139 17.7 40%
SN-DX-480-10-34F 480 1.0 3/380 86 10 2 3.2 444 69 37 320 7.7 40%


Load 400~480kg Gearless Traction Machine For Machine Room Less Elevator Parts 0
Load 400~480kg Gearless Traction Machine For Machine Room Less Elevator Parts 1

Load 400~480kg Gearless Traction Machine For Machine Room Less Elevator Parts 2


Load 400~480kg Gearless Traction Machine For Machine Room Less Elevator Parts 3



Load 400~480kg Gearless Traction Machine For Machine Room Less Elevator Parts 4



Load 400~480kg Gearless Traction Machine For Machine Room Less Elevator Parts 5



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
