|Name:||30/35 Degree Escalator||Speed:||0.5m/s|
|Warranty Time:||12 Months||Model:||Escalator|
|Usage:||Shopping Mall||Drive Type:||AC|
|Keywords:||Indoor Escalator||Application:||Shopping Mall/Subway/Airporte|

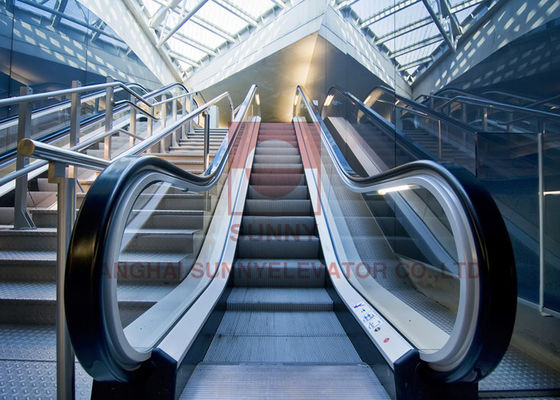

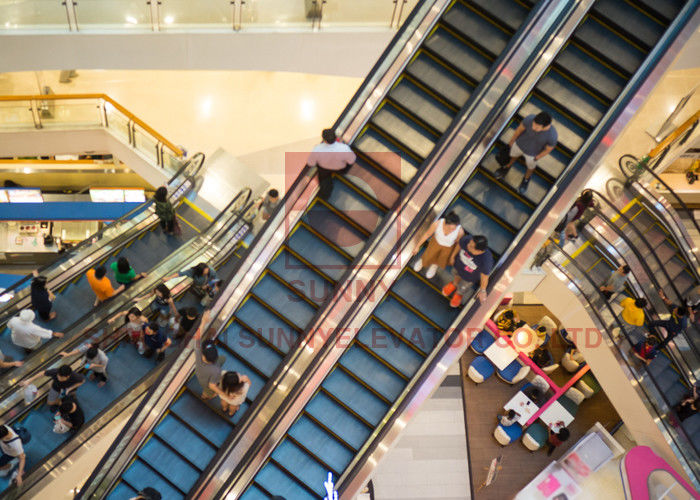

30 / 35 Degree Modern Design Escalator Automatic Mechanical Esclator for Shopping Mall
|Armrest center distance||D||838||1038||1238|
|Floor slab opening||E||1838||2038||2238|
|H1||Mainly based on civil engineering drawings|
|L1||Mainly based on civil engineering drawings|
|Two beams span||L=a+b+c
1.This drawing is based on the dimension mm. It applies to the indoor installation with traveling height at or lower than 9m and speed at 0.5m/s
2.When the step width=600mm, the upper truss should be extended for 417mm more.
3.When the traveling height is more than 7.8m, the upper truss should be extended for 417mm more.
4.The driving power is Three Phase AC 380V,50hz.
5.When the leveling span is more than 15.0m, it needs a intermediate support and lies in the middle.
6.When the escalator is installed in the second floor or above, the pit will be canceled and the bottom and upper construction structure will be balanced.
7.There should remain enough space in the escalator entry and exit. The width should be at least 1238mm and the depth from the handrail belt steering to the front barrier should be at least 2500mm.
8.The distance between the handrail center line and any barriers cannot be lower than 500mm. The distance from the handrail belt steering to the front barrier cannot be lower than 500mm.
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
