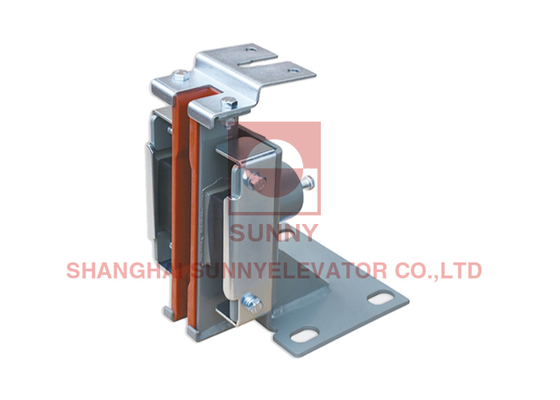

Elevator Slide Speed Guide Shoe: The Silent Guardian of Smooth Transit

At the heart of every modern elevator's smooth, safe, and quiet operation lies a critical component often overlooked: the slide speed guide shoe. This essential device is the primary interface between the moving elevator car and the fixed guide rails that run the entire height of the hoistway. Its fundamental purpose is to ensure precise alignment, dampen vibrations, and facilitate the high-speed travel that defines contemporary vertical transportation.

Functionally, the slide guide shoe acts as a bearing surface. It is typically a metal bracket, often cast or forged, that houses a replaceable composite lining or pad. This assembly clamps onto the elevator car's frame and is positioned to "ride" or slide against the T-shaped guide rails with a minimal, controlled clearance. Unlike traditional roller guides that use wheels, slide guides employ a sliding friction mechanism. This design is exceptionally robust and self-cleaning, making it highly reliable over long periods with minimal maintenance.

The performance of the slide guide shoe is paramount in managing speed. As elevators travel faster—exceeding speeds of several meters per second—the forces of aerodynamics, building sway, and imperfect rail alignment can induce oscillations and noise. The guide shoe's material composition is engineered for this specific task. The lining is made from specialized polymers or composites that offer an optimal coefficient of friction. This material is self-lubricating, wear-resistant, and designed to operate quietly without the need for external grease, which can attract dirt and create maintenance issues. This precise friction control ensures that the car remains stable and centered on the rails even during high-speed ascents and descents, preventing lateral sway that would compromise passenger comfort.

Furthermore, the slide speed guide shoe is a key contributor to safety. In the event of a safety gear activation (when the elevator emergency brake engages), the guide shoes are the components that clamp directly onto the rails, bringing the car to a controlled and safe stop. Their structural integrity is, therefore, non-negotiable.

In summary, the elevator slide speed guide shoe is a masterclass in precision engineering. It is a deceptively simple component that solves the complex challenge of guiding a massive, high-velocity cabin through a vertical shaft with unwavering stability, remarkable quietness, and absolute safety, making it an indispensable guardian of modern elevator performance.

Type	SN-DX-H17
Name	Slide speed guide shoe
Rated Speed	≤1.75m/s
Width of Guide Rails	10mm/16mm
Application	for CW

Type	SN-DX-H20
Name	Slide speed guide shoe
Rated Speed	≤2.5m/s
Width of Guide Rails	16mm
Allowable gross mass	≤1500kg
Pressure on the front surface of guide rail	1450N
Pressure on the side surface of guide rail	850N

SHOE LINING
