Heavy-Duty Three Panel Side Opening Elevator Door - Smooth & Quiet Operation

Heavy-Duty Three Panel Side Opening Elevator Door - Smooth & Quiet Operation

Large Image :  Heavy-Duty Three Panel Side Opening Elevator Door - Smooth & Quiet Operation

Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE,ISO9001
Model Number: SN-DM-MS series
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $500~1200
Packaging Details: container
Delivery Time: 15~30 days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 5000pcs/month
Detailed Product Description
Name: Three Panels Side Opening Door Applicable: Elevator Equipment
JJ: 900mm-1500mm Opening Way: CENTER
Voltage: AC220V Transportation: Sea Transportation
Keywords: Three Panels Side Opening Door Type: Three Panels Side Opening Door
Model: Three Panels Side Opening Door

3-Panel Side Opening Elevator Door - Space-Saving Sliding Design For Commercial & Residential Buildings



Product features

- MS series door has the most traditional design ideas ,lt can supportmost solutions for the elevator because of its Reliability, stability and diversity (Heavy-duty door ,Glass door,Fire-proof door, Water-proof door, Explosion-proof door,Folding door etc).



-MS series landing door use interlock MS209.More safety and reliability.



- MS series car door equip with VVVF drive system which are the mainpopular system/PM of the car door.



- Standard install type:Top of cabin , Straight beam of cabin.



- Excellence brief: Independent guiderail system, Pulse encoder withthe frequency converter realize the vector control mode throughout the whole distance, Europe-style structure of mechanical design is elegant and high strength.



Products Measurement

PL 900 950 1000 1050 1100 1150 1200 1250 1300 1350 1400 1450 1500
L1 1235 1302 1368 1438 1502 1568 1635 1702 1768 1835 1902 1968 2035
L2 1225 1292 1358 1425 1492 1558 1625 1692 1758 1825 1892 1958 2025
L3 325 325 325 200 200 200 237.5 237.5 237.5 275 275 218.8 225
L4 793 843 892 943 993 1043 1093 1143 1193 1243 1293 1343 1393
L5 1200 1267 1333 1400 1467 1533 1600 1667 1733 1800 1867 1933 2000
M 4 4 4 6 6 6 6 6 6 6 6 7 7

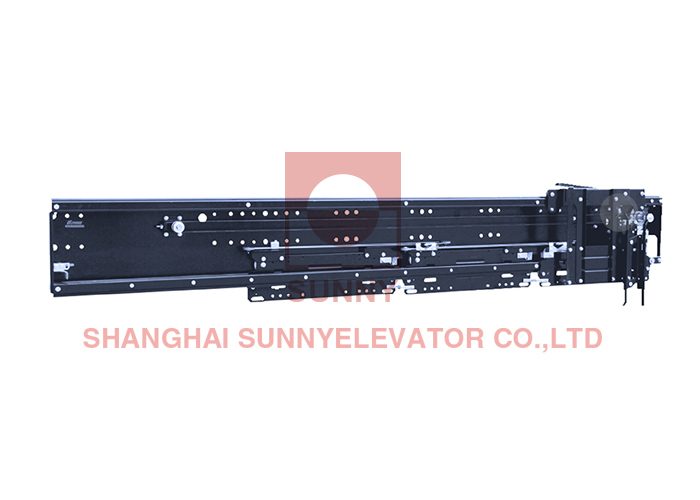

Heavy-Duty Three Panel Side Opening Elevator Door - Smooth & Quiet Operation 0

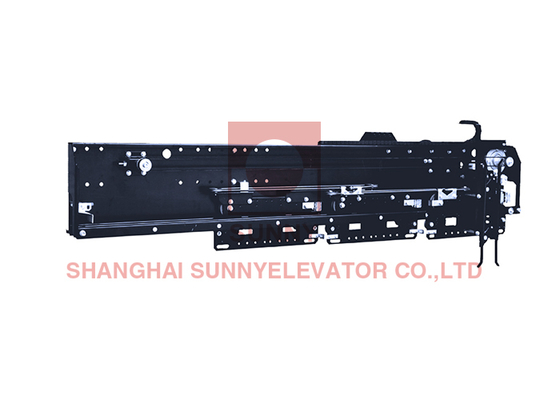

Heavy-Duty Three Panel Side Opening Elevator Door - Smooth & Quiet Operation 1

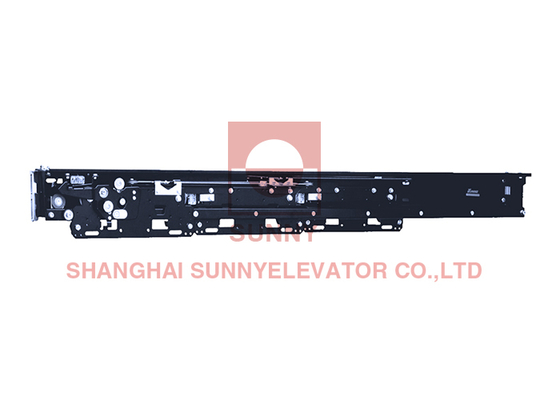

Heavy-Duty Three Panel Side Opening Elevator Door - Smooth & Quiet Operation 2

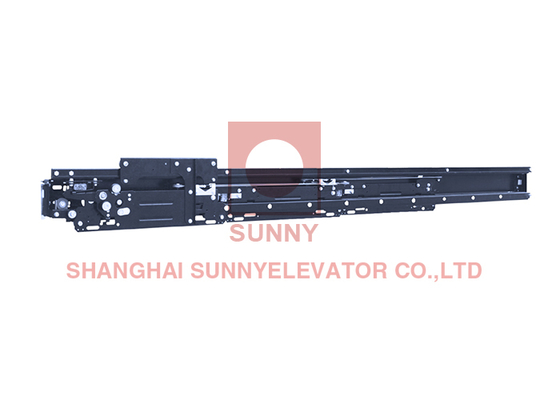

Heavy-Duty Three Panel Side Opening Elevator Door - Smooth & Quiet Operation 3



FAQ

1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
