Product Details:
Payment & Shipping Terms:
|
Name: | Passenger Elevator Lift | Load: | 250~2000kg |
---|---|---|---|
Speed: | 0.4~4.0m/s | Warranty: | 12 Months |
Elevator Type: | Passenger Elevator Lift | Control Mode: | Group Control |
Elevator Door: | Center Opening Door | Material: | 304 Stainless Steel |
Model: | Passenger Elevator Lift | Type: | Passenger Elevator Lift |
Use: | Mirror Etching Passenger Elevator | ||
High Light: | Tempered Glass MR Passenger Lift,Residential MR Passenger Lift,Machine Room Less Residential Home Elevators |

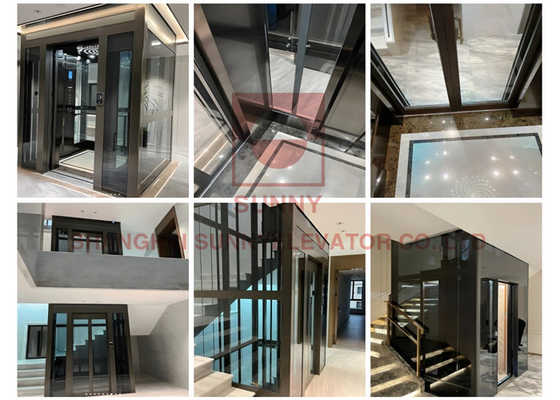

Residential Apartment Villa Passenger elevator Classic Model
Machine room less or MR
Load:400/450kg
Speed:0.4/1.0m/s
Stops: 3 or more
OH:2700
Pit:600mm
Shaft:W x D 1550X1700mm
Cabin:W x D x H 925X1075X2300mm
Door opening:700X2100 CO
Shaft Structure by Clinet or by factory
Colors choices

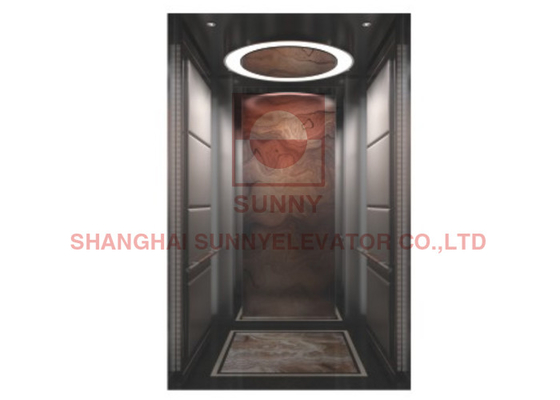

Cabin materials: tempered glass or stainless steel, etc.
Max Travel 0.63-35m, 1.0-60m, 1.5-75m, 1.75-90m, 2.0-100m, 2.5-120m | MR/MRL | Load(KG) | Speed(m/s) | Shaft WxD(mm) | OH(mm) | PIT(mm) | Car WxD(mm) | OP | Door Type |
MRL | 250 | 0.4 | 1450X1250 | 2700 | 500 | 800X900 | 600X2000 | CO | |
MRL | 320 | 0.4 | 1550X1500 | 2700 | 500 | 900X1100 | 700X2000 | CO | |
MRL | 400 | 0.4 | 1650X1550 | 2700 | 500 | 1000X1200 | 700X2000 | CO | |
MRL | 450 | 0.63 | 2000X1700 | 4100 | 1700 | 1100x1100 | 700x2100 | CO | |
MRL | 450 | 1 | 2000X1700 | 4100 | 1700 | 1100x1100 | 700x2100 | CO | |
MRL | 450 | 1.5 | 2000X1700 | 4200 | 1800 | 1100x1100 | 700x2100 | CO | |
MRL | 630 | 1 | 1790X1720 | 3600 | 1200 | 1400X1100 | 900X2100 | CO | |
MRL | 630 | 1.5 | 1790X1720 | 4200 | 1800 | 1400X1100 | 900X2100 | CO | |
MRL | 630 | 1.75 | 1790X1720 | 4200 | 1800 | 1400X1100 | 900X2100 | CO | |
MRL | 800 | 1 | 1750X1950 | 4200 | 1500 | 1350X1450 | 800X2100 | CO | |
MRL | 800 | 1.5 | 1750X1950 | 4200 | 1800 | 1350X1450 | 800X2100 | CO | |
MRL | 800 | 1.75 | 1750X1950 | 4200 | 1800 | 1350X1450 | 800X2100 | CO | |
MRL | 1000 | 1 | 2050X2000 | 4350 | 1500 | 1600X1400 | 900X2100 | CO | |
MRL | 1000 | 1.5 | 2050X2000 | 4500 | 1600 | 1600X1400 | 900X2100 | CO | |
MRL | 1000 | 1.75 | 2050X2000 | 4550 | 1600 | 1600X1400 | 900X2100 | CO | |
MRL | 1150 | 1 | 2700X1800 | 4400 | 1500 | 1800X1400 | 1100X2100 | CO | |
MRL | 1150 | 1.5 | 2700X1800 | 4400 | 1500 | 1800X1400 | 1100X2100 | CO | |
MRL | 1150 | 1.75 | 2700X1800 | 4500 | 1600 | 1800X1400 | 1100X2100 | CO | |
MRL | 1250 | 1 | 2900X2000 | 4100 | 1700 | 1900X1500 | 1100X2100 | CO | |
MRL | 1250 | 1.5 | 2900X2000 | 4200 | 1800 | 1900X1500 | 1100X2100 | CO | |
MRL | 1250 | 1.75 | 2900X2000 | 4200 | 1800 | 1900X1500 | 1100X2100 | CO | |
MRL | 1350 | 1 | 2500X2150 | 4350 | 1550 | 2000X1500 | 1100X2100 | CO | |
MRL | 1350 | 1.5 | 2500X2150 | 4500 | 1600 | 2000X1500 | 1100X2100 | CO | |
MRL | 1350 | 1.75 | 2500X2150 | 4500 | 1600 | 2000X1500 | 1100X2100 | CO | |
MRL | 1600 | 1 | 2600X2300 | 4350 | 1500 | 1900X1700 | 1100X2100 | CO | |
MRL | 1600 | 1.5 | 2600X2300 | 4400 | 1500 | 1900X1700 | 1100X2100 | CO | |
MRL | 1600 | 1.75 | 2600X2300 | 4500 | 1600 | 1900X1700 | 1100X2100 | CO | |
MR H≥2000(2000-2800) | MR/MRL | Load(KG) | Speed(m/s) | Shaft WxD(mm) | OH(mm) | PIT(mm) | Car WxD(mm) | OP | Door Type |
MR | 450 | 0.63 | 1600X1700 | 4200 | 1400 | 1100X1100 | 700X2100 | CO | |
MR | 450 | 1 | 1600X1700 | 4200 | 1500 | 1100X1100 | 700X2100 | CO | |
MR | 450 | 1.5 | 1600X1700 | 4400 | 1600 | 1100X1100 | 700X2100 | CO | |
MR | 630 | 0.63 | 1900X1700 | 4200 | 1400 | 1400X1100 | 800X2100 | CO | |
MR | 630 | 1 | 1900X1700 | 4200 | 1400 | 1400X1100 | 800X2100 | CO | |
MR | 630 | 1.5 | 1900X1700 | 4600 | 1500 | 1400X1100 | 800X2100 | CO | |
MR | 630 | 1.75 | 1900X1700 | 4600 | 1600 | 1400X1100 | 800X2100 | CO | |
MR | 800 | 1 | 2000X2000 | 4200 | 1500 | 1400X1350 | 800X2100 | CO | |
MR | 800 | 1.5 | 2000X2000 | 4200 | 1500 | 1400X1350 | 800X2100 | CO | |
MR | 800 | 1.75 | 2000X2000 | 4600 | 1700 | 1400X1350 | 800X2100 | CO | |
MR | 800 | 2 | 2000X2000 | 4800 | 1900 | 1400X1350 | 800X2100 | CO | |
MR | 800 | 2.5 | 2000X2000 | 5100 | 2100 | 1400X1350 | 800X2100 | CO | |
MR | 1000 | 1 | 2200X2200 | 4200 | 1500 | 1600X1500 | 900X2100 | CO | |
MR | 1000 | 1.5 | 2200X2200 | 4200 | 1500 | 1600X1500 | 900X2100 | CO | |
MR | 1000 | 1.75 | 2200X2200 | 4600 | 1700 | 1600X1500 | 900X2100 | CO | |
MR | 1000 | 2 | 2200X2200 | 4800 | 1900 | 1600X1500 | 900X2100 | CO | |
MR | 1000 | 2.5 | 2200X2200 | 5100 | 2100 | 1600X1500 | 900X2100 | CO | |
MR | 1250 | 1 | 2400X2200 | 4500 | 1400 | 1900X1500 | 1100X2100 | CO | |
MR | 1250 | 1.5 | 2400X2200 | 4600 | 1500 | 1900X1500 | 1100X2100 | CO | |
MR | 1250 | 1.75 | 2400X2200 | 4700 | 1600 | 1900X1500 | 1100X2100 | CO | |
MR | 1250 | 2 | 2400X2200 | 4900 | 1700 | 1900X1500 | 1100X2100 | CO | |
MR | 1250 | 2.5 | 2400X2200 | 5100 | 1900 | 1900X1500 | 1100X2100 | CO | |
MR | 1350 | 1 | 2400X2300 | 4400 | 1500 | 1900X1600 | 1100X2100 | CO | |
MR | 1350 | 1.5 | 2400X2300 | 4500 | 1600 | 1900X1600 | 1100X2100 | CO | |
MR | 1350 | 1.75 | 2400X2300 | 4600 | 1700 | 1900X1600 | 1100X2100 | CO | |
MR | 1350 | 2 | 2400X2300 | 4700 | 1800 | 1900X1600 | 1100X2100 | CO | |
MR | 1350 | 2.5 | 2400X2300 | 4900 | 2000 | 1900X1600 | 1100X2100 | CO | |
MR | 1350 | 4 | 2400X2300 | 5900 | 3800 | 1900X1600 | 1100X2100 | CO | |
MR | 1600 | 1 | 2500X2450 | 4400 | 1350 | 2000X1700 | 1200X2100 | CO | |
MR | 1600 | 1.5 | 2500X2450 | 4450 | 1350 | 2000X1700 | 1200X2100 | CO | |
MR | 1600 | 1.75 | 2500X2450 | 4500 | 1400 | 2000X1700 | 1200X2100 | CO | |
MR | 1600 | 2 | 2500X2450 | 4700 | 1800 | 2000X1700 | 1200X2100 | CO | |
MR | 1600 | 2.5 | 2500X2450 | 4900 | 2000 | 2000X1700 | 1200X2100 | CO | |
MR | 1600 | 4 | 2500X2450 | 5900 | 3800 | 2000X1700 | 1200X2100 | CO | |
MR | 2000 | 1 | 2850X2850 | 4200 | 1500 | 1700X2300 | 1100X2100 | CO | |
MR | 2000 | 1.5 | 2850X2850 | 4600 | 1600 | 1700X2300 | 1100X2100 | CO | |
MR | 2000 | 1.75 | 2850X2850 | 4600 | 1600 | 1700X2300 | 1100X2100 | CO | |
The parameters are subject to the engineer's final design |
FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
