Hydraulic 4 Post Car Elevator With Underground Parking System

Hydraulic 4 Post Car Elevator With Underground Parking System

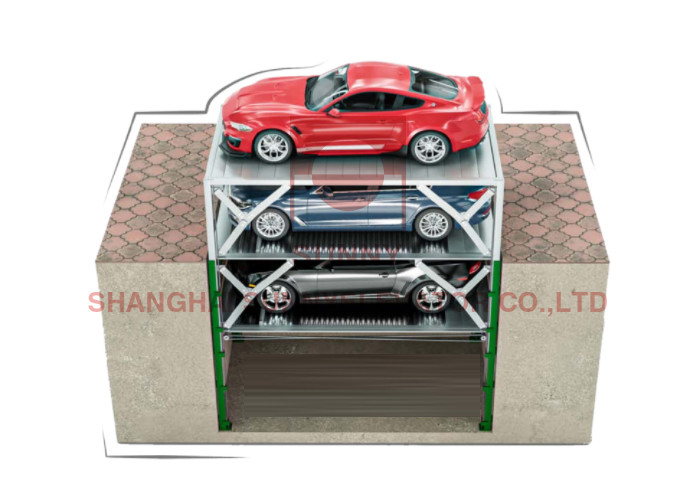

HYDRAULIC FOUR POST Car Elevator(LFP)
●Subterranean parking system inside concrete pit without prominent structure.

●Hydraulic driven with vertical cylinders, oil tubes & hoses and valves system.

●Customized product based on pit size, suitable for residential & commercial use

●lndependent parking system including upper platform (drive-through only).
●Mature & well tested product with easy installation and maintenance steps.

●Side supports of posts together with longitudinal & cross beams to keep unity.

●Complete chain & sprocket system to ensure balance & stability during operatior

●Chain anti-rupture devices to stop the system in case of chain rupture.
●Diamond- plates for the upper platform & galvanized wave plates for lower ones

●Tires stoppers in lower platforms to ensure correct placement of the cars.
●Limit switch in every level to stop platforms at predefined heights, IP 67.

●Operation box with dead man push buttons,emergency and on/off key.

●Electric Operation Box is operated with 24 V to protect against short circuit.

●Hydraulic power unit is fixed inside backside noise-insulated compartment .

●Product certified according to BS EN 14010:2003 +A1: 2009 & EN 1493:2010.

●Optional water pump inside the pit to pump out the water in case of flooding.

●The standard finishing is hot dip galvanized but can be in powder coated too.

FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
