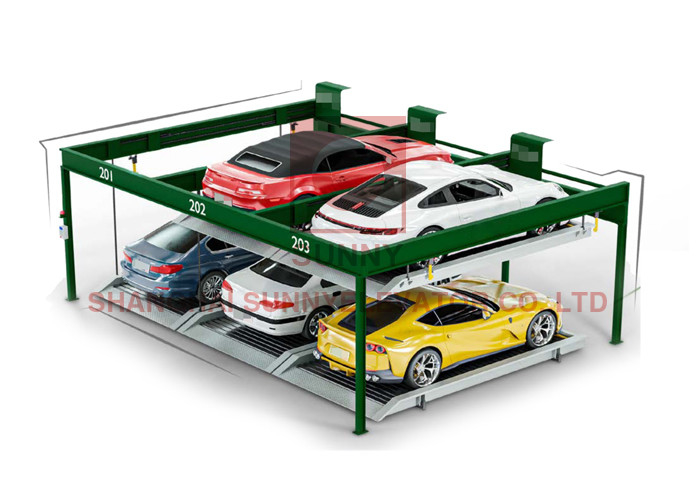

I Beam C Channels Structure Auto Parking Lift With Independent Platforms

Parking Lift Strong Structure (I-Beam & C-Channels) With Independent Platforms

●Strong Structure (I-beam & C-channels) with independent platforms

●Special platform profile with galvanized wave plates and tire stoppers.

●Customized design with multiple vertical levels (2-6) and multiplehorizontal bays (3-6).
●Top level platforms move vertically (Up & Down) only through geared motors & lifting chains.
●Lower level platforms slide horizontally only through geared motor& guide rails.
●Middle levels platforms move vertically & slide horizontally.
Each platform (except for lower level) is equipped with four safety hookdevices to prevent falling, collision and overload.
●Photo electric sensors to stop the unit when cars park improperly or when personsaccidentally cross in.
●Operation panel equipped with Emergency stop, manual keyboard & screenwith lC card reader.
●PLC device mounted inside electric panel to control the parking/retrieving process.

●The standard finishing is hot dip galvanized but can be in powder coated too.

FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
