Product Details:
Payment & Shipping Terms:
|
Name: | Hospital Elevator | Load: | 1600kg |
---|---|---|---|
Speed: | 1.00 -1.75m/s | Person: | 11~19 |
Control Mode: | Group Control | Keywords: | Hospital Elevator |
Drive Type: | AC | Control: | Collective Selective Control |
Model: | Hospital Elevator | Product: | Hospital Elevator |
Door: | Centre Open Or Side Open | ||
High Light: | AC Drive Type Hospital Elevator,1600kg Load Hospital Lift,Centre Open Hospital Bed Elevator |

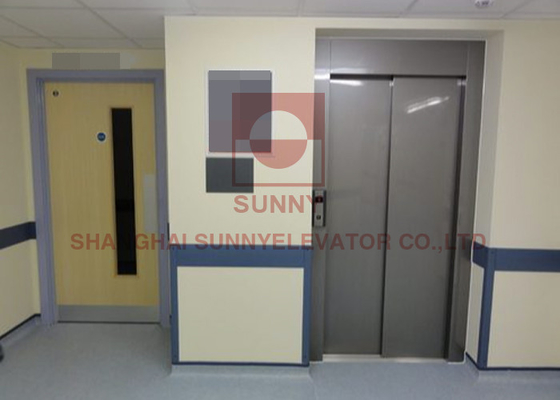

1600kg Comfortable Professional Manufacturer For Hospital Elevator
There is strict requirement for bed Lift because of the special environment in the hospital. Focusing on human-oriented design, SUNNY precisely controls elevator traveling speed and attentively makes comfortable space for passengers.
SUNNY bed elevator uses the new data network control technology to achieve intelligent elevator running, maximize lift utilization, and reduce patient waiting time. Meanwhile, using the world's most advanced permanent magnet synchronous motors, elevator realized digitization, low power consumption and long life. Functions designed for medical needs, highlights the people-oriented meticulous care.
Bed Elevator Specification
Loading capacity (passengers) | 1600kg (21 person) | |||
Rated speed(m/s) | 1.0 | 1.5 | 1.75 | |
Door opening size | 1100 | |||
Car size (mm) |
CW | 1400 | ||
CD | 2400 | |||
Hoistway size (mm) |
HW | 2250 | ||
HD | 2900 | |||
Machine room size (mm) | MRW | 2250 | ||
MRD | 2900 | |||
MRH | 2800 | |||
Overhead (mm) | 4400 | 4600 | 4600 | |
Pit Depth (mm) | 1500 | 1600 | 1600 | |
Max. Travel height (m) | 60 | 75 | 90 |
Product Features
1. Low carbon, energy saving, space saving.
2. Lower noise, safe and reliable running.
3. Competitive price and high quality.
FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
