35 Degree VVVF Drive Type Indoor Passenger Escalator Stainless Steel Handrail

35 Degree VVVF Drive Type Indoor Passenger Escalator Stainless Steel Handrail
35 Degree VVVF Drive Type Indoor Passenger Escalator Stainless Steel Handrail

Large Image :  35 Degree VVVF Drive Type Indoor Passenger Escalator Stainless Steel Handrail

Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE,ISO9001
Model Number: 35° Escalator
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $7000~12000
Packaging Details: container
Delivery Time: 15~30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Set/ Year
Detailed Product Description
Name: Escalator Speed: 0.5m/s
Step Width: 600~1000mm Inclination: 30/35°
Used: Indoor/Outdoor/Semi-Outer Warranty: 12 Months
Usage: Shopping Mall Product Name: Escalator
Model: Shopping Mall Escalator Type: Shopping Mall Escalator
Product: Shopping Mall Escalator Drive Type: VVVF
Highlight:

VVVF Drive Passenger Escalator

,

600mm Shopping Mall Escalator

,

Stainless Steel Handrail Passenger Escalator

35° VVVF Drive Type Indoor Passenger Escalator Stainless Steel Handrail



Escalator Indoor and Outdoor
Travel Height H24000mm
Inclined Degree 30°, 35°
Speed 0.45m/s, 0.5m/s
Flat Step 2 flat step, 3 flat step
Step Material Stainless steel, Aluminum (standard for outdoor)
Step Width 600mm, 800mm, 1000mm
Escalator Width 1240mm, 1440mm, 1640mm for 35 incline
Capacity (persons/h) 6000, 9000
Balustrade Tempered glass (10mm), vertical to truss
Balustrade height 900mm, 1000mm (optional)
Balustrade bracket Stainless steel
Handrail C type, Black (Red, Blue, Gray)
Handrail drive Big friction wheel
Power Supply Motor Power: 380V±7%, 50Hz , 3 Phase
Lighting Power: 220V, 50Hz, Single Phase
Control system Std.(Star delta)
Energy Saving Function Auto Restart, from stop to high speed
Photoelectricity VF low speed , speed from low to high
VF Restart, speed from stop to low to high
Step chain Roller built-in
Track radius 1500/1000mm
Truss Squre tube
Standard GB16899-2011
CE, EN115-2008(2010A+)

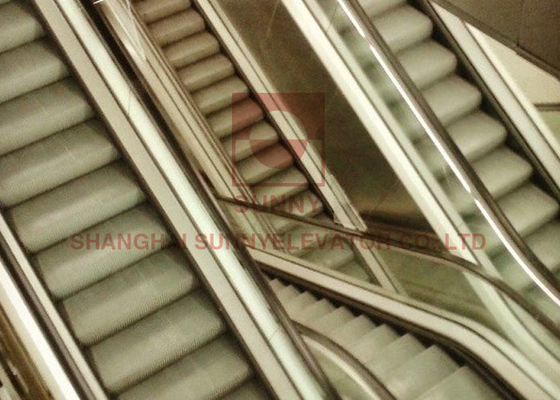

35 Degree VVVF Drive Type Indoor Passenger Escalator Stainless Steel Handrail 0

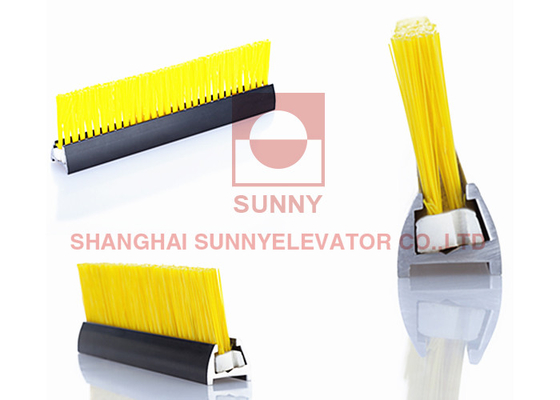

35 Degree VVVF Drive Type Indoor Passenger Escalator Stainless Steel Handrail 1



35 Degree VVVF Drive Type Indoor Passenger Escalator Stainless Steel Handrail 2



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
