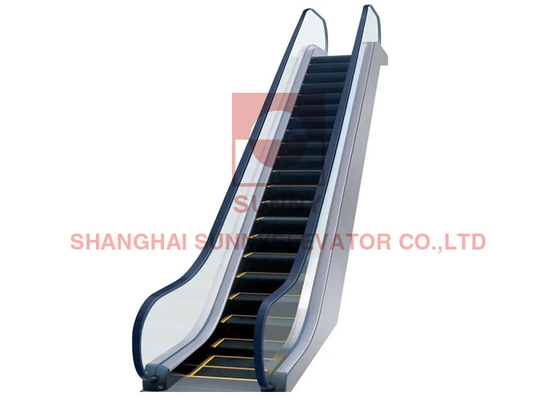

0.5m/S 30 Degree Speed Commercial Indoor Escalator For Shopping Mall

0.5m/S 30 Degree Speed Commercial Indoor Escalator For Shopping Mall
0.5m/S 30 Degree Speed Commercial Indoor Escalator For Shopping Mall

Large Image :  0.5m/S 30 Degree Speed Commercial Indoor Escalator For Shopping Mall

Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE,ISO9001
Model Number: SN-ES
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $7000~12000
Packaging Details: container
Delivery Time: 15~30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Set/ Year
Detailed Product Description
Name: Escalator Speed: 0.5m/s
No.of Horizon: 2 Step Width: 600mm/800mm/1000mm
Angle: 30 Degree, 35 Degree Control System: VVVF Drive
Usage: Shopping Mall Elevators Warranty: 12 Months After Shipping
Drive Type: AC Application: Shopping Mall/Subway/Airporte
Model: Escalator Product: Escalator
Highlight:

0.5m/S Commercial Indoor Escalator

,

VVVF Drive Commercial Escalator

,

35 Degree Indoor Escalator

0.5m/S Speed Good Commercial Indoor Escalator Price For Shopping Mall



30°-escalator:

Step width(A) Lift height(H) Motor Power(KW)
600 2500-6000 5.5
800 2500-4390 5.5
4391-5990 7.5
5991-6000 8
1000 2500-3300 5.5
3301-4490 7.5
4491-4790 8
4791-6000 11



Step width(A) A B C D E F
600 600 838 1200 2500 3150 1200
800 800 1038 1400 2900 3550 1400
1000 1000 1238 1600 3300 3950 1600



  Support load(KN) Support load(KN) Support load(KN)
Step width(A) 600 800 1000
No intermediate support R1=(0.0034L+15.5)*2 R1=(0.00375L+17)*2 R1=(0.0042L+18.5)*2
R2=(0.0034L+10)*2 R2=(0.00375L+11)*2 R2=(0.0042L+11.5)*2
One middle support R1=(0.0034L+13.5)*2 R1=(0.00375L+15.1)*2 R1=(0.0042L+16.5)*2
R2=(0.0034L+8.1)*2 R2=(0.00375L+8.8)*2 R2=(0.0042L+9)*2
R3=(0.00355L+10.5)*2 R3=(0.00375L+11.5)*2 R3=(0.0042L+12)*2



35°-escalator:

Step width(A) Lift height(H) Motor Power(KW)
600 2500-6000 5.5
800 2500-4590 5.5
4591-6000 7.5
1000 2500-3420 5.5
3421-4660 7.5
4661-4970 8
4971-6000 11



Step width(A) A B C D E F
600 600 838 1200 2500 3150 1200
800 800 1038 1400 2900 3550 1400
1000 1000 1238 1600 3300 3950 1600



  Support load(KN) Support load(KN) Support load(KN)
Step width(A) 600 800 1000
No intermediate support R1=(0.0034L+15.5)*2 R1=(0.00375L+17)*2 R1=(0.0042L+18.5)*2
R2=(0.0034L+10)*2 R2=(0.00375L+11)*2 R2=(0.0042L+11.5)*2



0.5m/S 30 Degree Speed Commercial Indoor Escalator For Shopping Mall 0



0.5m/S 30 Degree Speed Commercial Indoor Escalator For Shopping Mall 1



0.5m/S 30 Degree Speed Commercial Indoor Escalator For Shopping Mall 2



0.5m/S 30 Degree Speed Commercial Indoor Escalator For Shopping Mall 3



0.5m/S 30 Degree Speed Commercial Indoor Escalator For Shopping Mall 4



0.5m/S 30 Degree Speed Commercial Indoor Escalator For Shopping Mall 5



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
