In Ground Mid Rise Auto Pulley Scissor Lift For Vehicle Maintenance

In Ground Mid Rise Auto Pulley Scissor Lift For Vehicle Maintenance
In Ground Mid Rise Auto Pulley Scissor Lift For Vehicle Maintenance

Large Image :  In Ground Mid Rise Auto Pulley Scissor Lift For Vehicle Maintenance

Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE,ISO9001
Model Number: IN-GROUND PULLEY SCISSOR LIFT
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $5000~8000
Packaging Details: container
Delivery Time: 15~30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Set/ Year
Detailed Product Description
Type: Scissor Lift Load: 4000kg
Lighting Height: 1700mm Keywords: IN-GROUND PULLEY SCISSOR LIFT
Motor Power: 3.0kw-380v Warranty: 12 Months After Shipping
Certification: CE,ISO9001 Weight: 1900kg
Model: Scissor Lift Product Name: Scissor Lift
Highlight:

In Ground Pulley Scissor Lift

,

4000kg Pulley Scissor Lift

,

4000kg mid rise auto lift

In-Ground Pulley Scissor Lift Apply To All Small Type Vehicle Maintenance

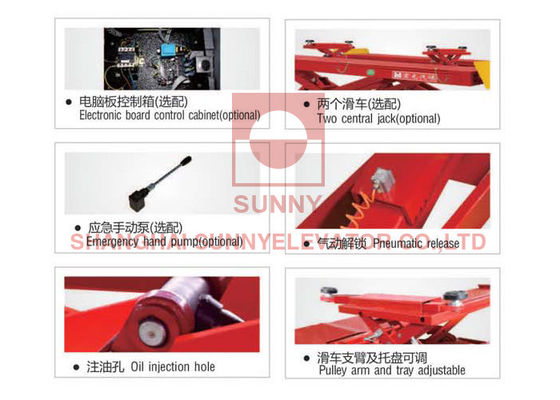

CHARACTERISTICS

1.Hydraulic synchronous control, synchronization precision.
2.The hydraulic system adopts ltaly electromagnetic valve and imports of seal, ensure the stabilit and service life of the machine.
3.This machine is composed of a machine frame, hydraulic system, pneumatic system and electric system is composed of four parts.
4.Can be matched with various locating turntable .
5.0il cylinder with upper returm oil, prevent oil cylinder rust.





TECHNICAL SPECIFICATIONS



Lifting Capacity 4000kg
Lighting Height 1700mm
Min.Height 340mm
Lifting Time 50-60s
Length of the Platform 4480mm
Platform Width 600mm
Motor Power 3.0kw-380v or 3.0kw-220v
Oil Pressure Rating 24MPa
Air Pressure 0.6-0.8MPa
Weight 1900kg



DIMENSIONS(mm)



In Ground Mid Rise Auto Pulley Scissor Lift For Vehicle Maintenance 0



In Ground Mid Rise Auto Pulley Scissor Lift For Vehicle Maintenance 1



In Ground Mid Rise Auto Pulley Scissor Lift For Vehicle Maintenance 2



In Ground Mid Rise Auto Pulley Scissor Lift For Vehicle Maintenance 3



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
