Product Details:
Payment & Shipping Terms:
|
Name: | Moving Sidewalk | Width: | 800-1000mm |
---|---|---|---|
Angle: | 0-12 Degree | Keywords: | Moving Walk |
Motor Power: | 380V/50Hz/3p | Speed: | 0.5M/S |
Specification: | CE; IS9001; IS14001 | Drive Mode: | AC |
Product Name: | Moving Sidewalk | Application: | Escalator Moving Sidewalk |
Model: | Moving Sidewalk | Type: | Moving Sidewalk |
Highlight: | 800mm Wide Moving Sidewalk,800mm Wide Moving Walkway,10mm Tempered Glass Moving Sidewalk |

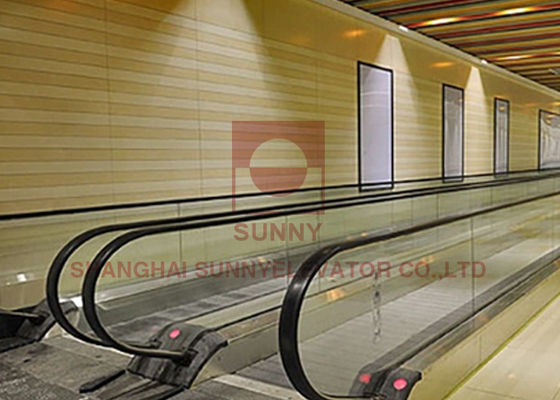

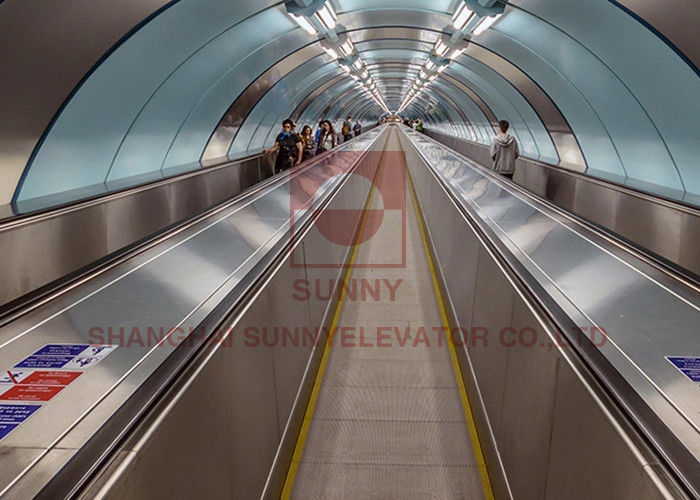

Solid Reliable Passenger Moving Sidewalk With 800mm Wide Moving Walk
Solid Reliable Passenger Moving Sidewalk
Product Description
Moving walk
•Escalator and sidewalk can automatically monitor the operating status of the escalator and sidewalk with advanced microcomputer control systems and self-diagnosis devices. Once faults or abnormalities are found, they will be displayed on the digital tube in real time, which fully protects stable and reliable operation of escalator and sidewalk.
•Humanized board protects the brush function; it further protects the safety of passengers.
•Automatic lubrication system with stable performance and good lubrication conditions to ensure the normal operation of the equipment; prolong the service life.
•With uniquely shaped handrail entry device, like a "protective hand", effectively prevents foreign objects from entering the handrail drive area, making the operation of escalators and sidewalks safer and more reliable.
Standard specification | |
Application | Indoor, outdoor, 16-hr operation daily. |
Horizontal span (m) | ≤50 |
Inclination (°) | 10/11/12 |
Step width (mm) | 800/1000 |
Upper landing horizontal distance (mm) | 400 |
Speed (m/s) | 0.5 |
Main power | 380V/50Hz/3P |
Balustrade | Tempered glass (10mm) |
Handrail bracket | Stainless steel |
Handrail | Black |
Balustrade height (mm) | 900 |
Inner & outer decking | Hairline stainless steel |
Skirting | Hairline stainless steel |
Step | Stainless steel |
Landing plate | Stainless steel (anti-sliding) |
Illumination | Lighting under upper & lower landing pallets |
Indicator | Failure code indicator on control cabinet |
Operation | Emergency stop button Key switch Inspection operation |
FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
