1000mm 0.5m/S Escalator Walkway Pallet Type Passenger Conveyor Inclined

1000mm 0.5m/S Escalator Walkway Pallet Type Passenger Conveyor Inclined
1000mm 0.5m/S Escalator Walkway Pallet Type Passenger Conveyor Inclined

Large Image :  1000mm 0.5m/S Escalator Walkway Pallet Type Passenger Conveyor Inclined

Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE,ISO9001
Model Number: 12°MOVING WALK
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $7000-12000
Packaging Details: container
Delivery Time: 15~30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Set/ Year
Detailed Product Description
Name: Escalator Walkway Speed: 0.5m/s
Angle: 0-12° Keywords: Moving Walk
Usage: Shopping Mall/Subway/Airport Business Type: Manufacturer
Control System: VVVF Drive Material: Stainless Steel
Model: Escalator Walkway Type: Escalator Walkway
Highlight:

1000mm escalator walkway

,

0.5m/s escalator walkway

,

1000mm passenger conveyor

Escalator Sidewalk Passenger Conveyor Comfortable Reliable Moving Walkway



What is a moving walkway?
The pallet type moving walkway is the common type of moving walkway today. The pallets are metal, and are on a track. Pallet type moving walkways can also be inclined, and even be flat, then inclined.



Escalator Specification Table

Product type inclined travelator inclined travelator double-arc travelator horizontal travelator
(Angle of inclination) 10°,11°,12° 10°,11°,12° 10°,11°,12°
(Step width)mm 1000,800 1000,800 1000,800 1400,1200,1000,800
(Running speed)m/s 0.5 0.5/0.65 0.5/0.65 0.5
(Rise H)m ≤7 ≤7 ≤6 0



Travelator Configuration Table

  Main Feature Option Function Standard Function
1 Height 3000-7000mm Outside Cladding Skirting Contact
2 Truss Square Tube 5.0mm Inverter VVVF Handrail Entrance Contact
3 Pallet Alu. Pallet 400mm Remote Control Broken Step-Chain Contact
4 Pallet Chain DONGHUA/WULF Pallet Chain Emergency Brake Broken Drive-Chain Contact
5 Pallet Chain Tension 180KN Comb Lighting Step Sag Contact
6 Roller FAIGLE(NSK) Skirting Lighting Motor Overload And Overheat Contact
7 Balustrade 10mm Glass+silk-screen Handrail Lighting Comb Contact
8 Handrail Colours CKG Handrail Heating System Step Gap Illumination
9 Handrail Profile Aluminum Groove of Oil Motor Speed Monitor
10 Landing Plate Alu. Die Casting - Folding Wire Cover Emergency Stop Button
11 Direction Indicator Embed LCD Display/Stand Column Type Double Brush Mail Drive-Chain Contact
12 Photoelectricity Correlation+Diffuse Fault Quantity ≥99 Over Speed Monitor
13 Skirting Panel 2.0mmSUS316 Down Driver Wheel Safety Brush
14 Decking 1.5mmSUS316
15 Control Box 2.0mmSUS304
16 Motor SIEMENS
17 Drive Shaft SKF
18 Inverter YASKAWA
19 PLC MITSUBISHI
20 Switch SCHMERSAL

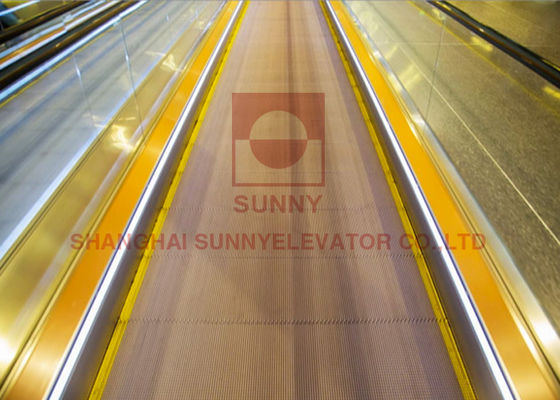

1000mm 0.5m/S Escalator Walkway Pallet Type Passenger Conveyor Inclined 0

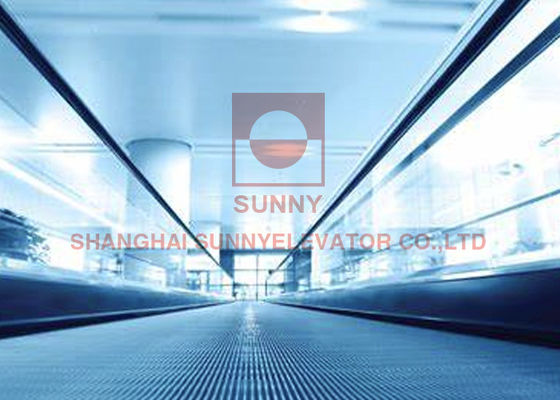

1000mm 0.5m/S Escalator Walkway Pallet Type Passenger Conveyor Inclined 1

FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
