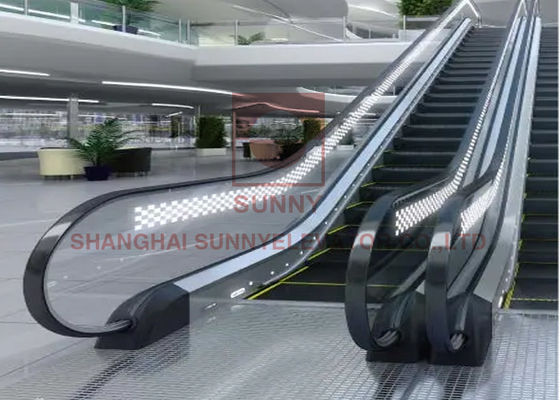

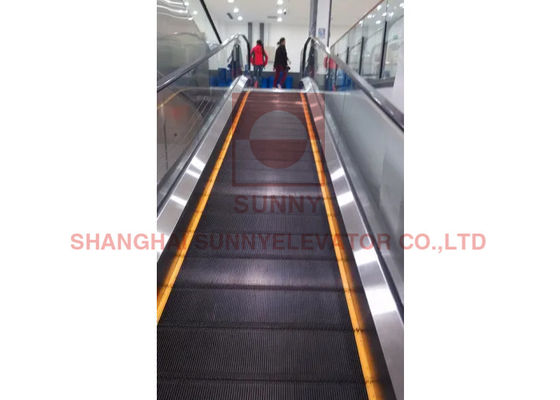

Angle 35 Indoor 6000 Person 800mm AC Shopping Mall Indoor Escalator

Angle 35 Indoor 6000 Person 800mm AC Shopping Mall Indoor Escalator
Angle 35 Indoor 6000 Person 800mm AC Shopping Mall Indoor Escalator

Large Image :  Angle 35 Indoor 6000 Person 800mm AC Shopping Mall Indoor Escalator

Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE,ISO9001
Model Number: 35° Escalator
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $7000-12000
Packaging Details: container
Delivery Time: 15~30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Set/ Year
Detailed Product Description
Name: Shopping Mall Indoor Escalator Speed: 0.5m/s
Degree: 30°, 35° Driven Type: AC
Keywords: Escalator Warranty Time: 12 Months
Running Mode: Moving Cascade Level: Three
Model: Shopping Mall Indoor Escalator Type: Shopping Mall Indoor Escalator
High Light:

6000 person AC Mall Escalator

,

Indoor 800mm Shopping Mall Escalator

,

Angle 35 800mm Mall Escalator

Indoor Vvvf Passenger Escalator Moving Walk With 800mm S/S Step



Automatic escalator is a high-tech result combined leading-edged technology and sophisticated manufacturing processes and can virtually meet various demands of commercial occasions, by incorporating advanced design concepts into construction of product, and complying the design specifications and application requirements of local and international markets. It offers you safe, reliable and efficient three-dimensional transport service, while highlighting the building with its smart shape and graceful appearance. With carefully-designed ergonomic features, you can enjoy your life safely and comfortably with products.



Specification
Max. Rise: 16m
Angle: 30° 35°
Max Span:
Step width: 1000mm/800mm/600mm
Speed: 0.5m/s
Escalator width: 1560mm
Using environment: Indoor/ outdoor



Technical Data

Escalator Indoor and Outdoor
Travel Height H≤24000mm
Inclined Degree 30°, 35°
Speed 0.45m/s, 0.5m/s
Flat Step 2 flat step, 3 flat step
Step Material Stainless steel, Aluminum (standard for outdoor)
Step Width 600mm, 800mm, 1000mm
Escalator Width 1240mm, 1440mm, 1640mm for 35 incline
Capacity (persons/h) 6000, 9000
Balustrade Tempered glass (10mm), vertical to truss
Balustrade height 900mm, 1000mm (optional)
Balustrade bracket Stainless steel
Handrail C type, Black (Red, Blue, Gray
Handrail drive Big friction wheel
Control system Std.(Star delta)
Power Supply Motor Power: 380V±7%, 50Hz , 3 Phase
Lighting Power: 220V, 50Hz, Single Phase
Energy Saving Function Auto Restart, from stop to high speed
Photoelectricity VF low speed , speed from low to high
VF Restart, speed from stop to low to high
Step chain Roller built-in
Track radius 1500/1000mm



Escalator Construction Sketch

Angle 35 Indoor 6000 Person 800mm AC Shopping Mall Indoor Escalator 0

Angle 35 Indoor 6000 Person 800mm AC Shopping Mall Indoor Escalator 1

Angle 35 Indoor 6000 Person 800mm AC Shopping Mall Indoor Escalator 2
Delivery


Angle 35 Indoor 6000 Person 800mm AC Shopping Mall Indoor Escalator 3



Angle 35 Indoor 6000 Person 800mm AC Shopping Mall Indoor Escalator 4



Angle 35 Indoor 6000 Person 800mm AC Shopping Mall Indoor Escalator 5



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
