Payment & Shipping Terms:
|Degree:||30°, 35°||Balustrade Bracket:||Stainless Steel|
|Keywords:||Escalator||Warranty Time:||12 Months|
|Cascade Level:||Two||Driving Type:||Screw Type Elevator|
VVVF 30 degree escalator,
Handrail 1000mm outdoor escalator,
VVVF 1000mm escalator

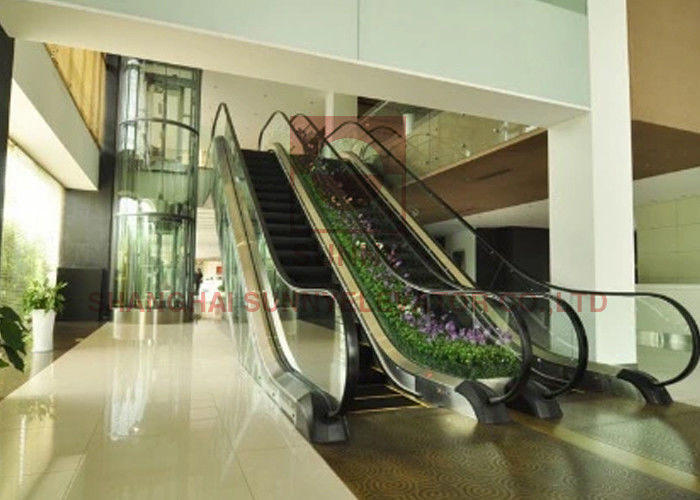

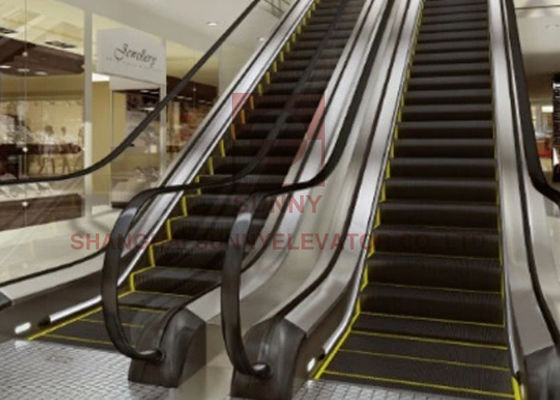

Vvvf Indoor / Outdoor Safety Commercial Shopping Mall Escalator
Automatic escalator is a high-tech result combined leading-edged technology and sophisticated manufacturing processes and can virtually meet various demands of commercial occasions, by incorporating advanced design concepts into construction of product, and complying the design specifications and application requirements of local and international markets. It offers you safe, reliable and efficient three-dimensional transport service, while highlighting the building with its smart shape and graceful appearance. With carefully-designed ergonomic features, you can enjoy your life safely and comfortably with UNITE products.
|Escalator||Indoor and Outdoor|
|Inclined Degree||30°, 35°|
|Flat Step||2 flat step, 3 flat step|
|Step Material||Stainless steel, Aluminum (standard for outdoor)|
|Step Width||600mm, 800mm, 1000mm|
|Escalator Width||1240mm, 1440mm, 1640mm for 35 incline|
|Capacity (persons/h)||6000, 9000|
|Balustrade||Tempered glass (10mm), vertical to truss|
|Balustrade height||900mm, 1000mm (optional)|
|Balustrade bracket||Stainless steel|
|Handrail||C type, Black (Red, Blue, Gray)|
|Handrail drive||Big friction wheel|
|Power Supply||Motor Power: 380V±7%, 50Hz , 3 Phase|
|Lighting Power: 220V, 50Hz, Single Phase|
|Control system||Std.(Star delta)|
|Energy Saving Function||Auto Restart, from stop to high speed|
|Photoelectricity VF low speed , speed from low to high|
|VF Restart, speed from stop to low to high|
|Step chain||Roller built-in|
Escalator Construction Sketch
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
