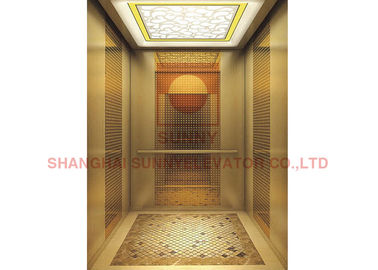

2100mm Door Height VVVF Panoramic Observation Passenger Elevator Lift

2100mm Door Height VVVF Panoramic Observation Passenger Elevator Lift
2100mm Door Height VVVF Panoramic Observation Passenger Elevator Lift

Large Image :  2100mm Door Height VVVF Panoramic Observation Passenger Elevator Lift

Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: 3C,CE
Model Number: Passenger elevator
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $7000~12000
Packaging Details: container
Delivery Time: 15~30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Set/ Year
Detailed Product Description
Name: Passenger Elevator Lift Load: 630-1600kg
Speed: 1.0-2.5m/s Door Open Way: Center Open, Side Open
Door Height: 2100mm (Standard) Transport Package: Woden Box
Usage: Passenger Elevator Lift Material: Stainless Steel 304
Model: Passenger Elevator Lift
High Light:

VVVF Observation Elevator

,

Panoramic Observation Elevator

VVVF Golden Mirror Passenger House Panoramic Cargo Observation Elevator

2100mm Door Height VVVF Panoramic Observation Passenger Elevator Lift



Parameters

Capacity Speed Cabin Size Shaft Size Max Travel Min Floor H
DL V Width Depth Open Width Depth Pit OH MRH Max R Min D
(kg) (m/s) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (m) (m)
630 1 1400 1150 800*2100 2000 1800 1500 4500 2300 50 2.7
1.5 1600 4600 70
1.75 1700 4700 90
800 1 1350 1400 800*2100 2000 2100 1500 4500 2300 50
1.5 1600 4600 70
1.75 1700 4700 90
2 2050 2100 1900 5000 2500 100
2.5 2100 5200 120
1000 1 1600 1400 900*2100 2200 2100 1500 4500 2300 50
1.5 1600 4600 70
1.75 1700 4700 90
2 2300 2100 1900 5000 2500 100
2.5 2100 5200 120
1150 1 1800 1400 1000*2100 2400 2100 1500 4500 2300 50
1.5 1600 4600 70
1.75 1700 4700 90
2 2500 2150 1900 5000 2500 100
2.5 2200 5200 120
1350 1 2000 1500 1100*2100 2600 2200 1500 4500 2500 50
1.5 1600 4600 70
1.75 1700 4700 90
2 2700 2250 1900 5000 100
2.5 2200 5200 120
1600 1 2000 1700 1100*2100 2600 2400 1500 4600 2500 50
1.5 1600 4700 70
1.75 1700 4800 90
2 2700 2450 1900 5100 100
2.5 2200 5300 120



2100mm Door Height VVVF Panoramic Observation Passenger Elevator Lift 02100mm Door Height VVVF Panoramic Observation Passenger Elevator Lift 12100mm Door Height VVVF Panoramic Observation Passenger Elevator Lift 22100mm Door Height VVVF Panoramic Observation Passenger Elevator Lift 3



2100mm Door Height VVVF Panoramic Observation Passenger Elevator Lift 4



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
