Product Details:
Payment & Shipping Terms:
|
Name: | 12° Moving Walks | Angle: | 12° |
---|---|---|---|
Speed: | 0.5m/s | Traveling Height: | 1000-3000 |
Motor Capacity: | 5.5kw | Business Type: | Manufacturer |
Step Width: | 600/800/1000mm | Application: | Escalator Moving Sidewalk |
Main Power: | 380V/50Hz/3P | Control System: | VVVF Drive |
Model: | Moving Walk Escalator | Product: | Moving Walk Escalator |
Product Name: | Moving Walk Escalator | ||
Highlight: | elevator and escalator,moving walk escalator |

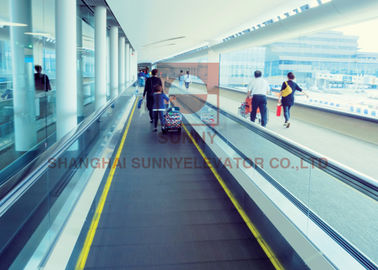

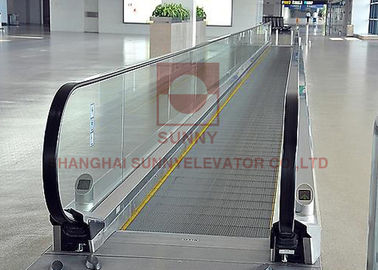

Outdoor 12° Escalators And Moving Walkways Speed 0.5m / S For Supermarket
Motor capacity (KW) |
Traveling height H |
Traveling height H |
||
1000-3000 | 5.5 | 1000-3200 | 5.5 | |
3000-4000 | 7.5 | 3300-4200 | 7.5 | |
4100-4200 | 8 | 4300-4400 | 8 | |
4300-6800 | 11 | 4500-7000 | 11 | |
6900-9000 | 15 | 7100-9200 | 15 | |
Center supporting height H1 |
When the traveling height 2600<H<5800,we deed to use one center support.And supporting height is H1=H/2-780. |
|||
Center supporting height H1 Center supporting height H2 |
When the traveling height 5800<H<7800,we deed to use two center supports.The traveling height of first one is H1=H/3-881,and second one is H2=2H/3-681. |
|||
Power supply Use needs to supply 380V AC 50Hz three-phase five-wire power supply. Voltage should ≤10 when moving walk at the start and the voltage should be ≤5 in normal operation,Maximum starting current should less than3.5 times of rated current. |
Technical notes | ||
Dip angle α | 12° | |
Speed V | 0.5m/s | |
Step width A | 1000 | 800 |
Handrail inner side distance B |
1158 | 958 |
Handrail center distance C |
1238 | 1038 |
Moving walk outside width D |
1600 | 1400 |
Supporting beam length E |
1660 | 1460 |
Exterior barrler width F |
2310 | 2110 |
Pit width G | 1660 | 1460 |
Support opposite force R1[kN] |
0.009xL11+22 | 0.0078xL11+19 |
Support opposite force R2 [kN] |
0.009xL12+10 | 0.0078xL12+9 |
Support opposite force R3 [kN] |
0.0117x[L1+L2] | 0.01014x[L1+L2] |
Support opposite force R4 [kN] |
0.0117x[L2+L3] | 0.01014x[L2+L3] |
Notes
1 . When the moving walk is installed in the second floor and above, pit is canceled. And the bottom
and exit of construction should be symmetrical.
2. sufflcient unblocked space is needed at entrance
and exit of moving walk. The width should not less than 1310 and the depth from handrail belt
swerving edge lo any barrier should not less than 2500.
3. the distance between moving walk and
any barrier should≥500
4. User needs Io Supply a earth connection equipment with resistance less
than 4 ohm.
5. When the traveling height H≤2600,cancal to support R3, R4.
6. when the travelling height 2600<H≤5800, we only need to support R3 and L1=L2=L/2
7. When the traveling height 5800< H≤7800, we only need 10 support R3, R4 and L1=12=13=1/3.
8. This plan Is current 12°standard moving walk construction size, if the construction can not be executed, please contact Technology Department
9. The unit in this plan millimeter. We reserve right to change without prior notice.
12° Moving walk construction layout drawing
FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
