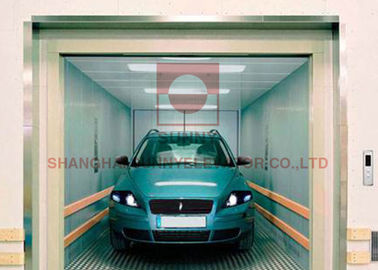

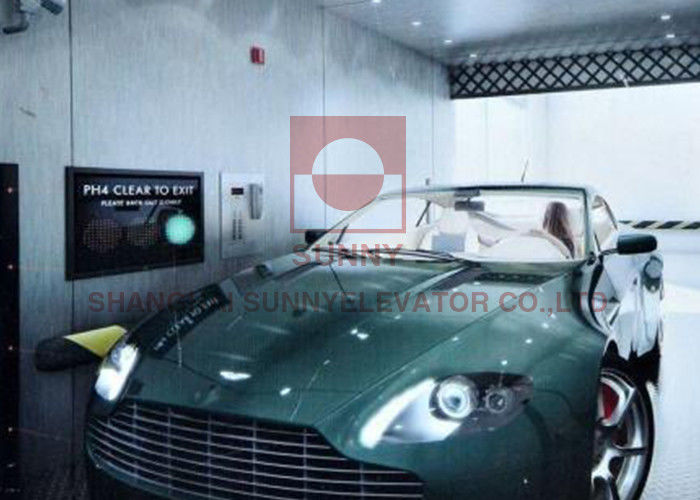

Commercial Car Elevator Freight Lift Vehicle Elevator 3000kg~5000kg Load

Commercial Car Elevator Freight Lift Vehicle Elevator 3000kg~5000kg Load
Commercial Car Elevator Freight Lift Vehicle Elevator 3000kg~5000kg Load

Large Image :  Commercial Car Elevator Freight Lift Vehicle Elevator 3000kg~5000kg Load

Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE,ISO9001
Model Number: Car Elevator
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $7000-12000
Packaging Details: container
Delivery Time: 15~30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Set/ Year
Detailed Product Description
Name: Car Elevator Load: 3000kg~5000kg
Speed: 0.25/0.5m/s Application: Residential Car Elevator
Material: Stainless Steel Door Open Type: Four Panel Center Opening
Type: Car Elevator Brand: SUNNY Elevator
Model: Car Elevator
Highlight:

residential car elevator

,

commercial car elevator

5000kg Capacity Freight Lift Automobile Car Elevator / Heavy Load Car Elevator / Car Parking Elevator

Commercial Car Elevator Freight Lift Vehicle Elevator 3000kg~5000kg Load

  • Name: Underground Car Elevator
  • Speed: 0.25/0.5m/s
  • Material: Stainless Steel
  • Type: Commercial Car Elevator
  • Load: 3000~5000kg
  • Application: Residential Car Elevator
  • Door Open Type: Four Panel Center Opening
  • Brand: SUNNY Elevator

Car elevator specifications

Load

(kg)

Speed

(m/s)

Exterior size of car width x depth(mm) Net door opening width x height(mm) Shaft size(mm) Machine room size(mm) Door Open type
width x depth(mm) Overhead height Pit depth width x depthxheight
3000 0.25/0.5 2700x5800 2400x2200 4100x6160 4800 1600 4100x6160x2500 Four panel center opening
5000 0.25 3500x7200 2600x2200 4750x7560 4750x7560x2500 Four panel center opening
0.5



Car Elevator Construction Layout Drawing

Commercial Car Elevator Freight Lift Vehicle Elevator 3000kg~5000kg Load 0



Commercial Car Elevator Freight Lift Vehicle Elevator 3000kg~5000kg Load 1



Commercial Car Elevator Freight Lift Vehicle Elevator 3000kg~5000kg Load 2



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
