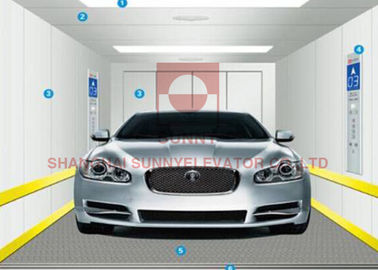

Simple Operation Residential Car Elevator Large Space Car Lift Elevator

Simple Operation Residential Car Elevator Large Space Car Lift Elevator
Simple Operation Residential Car Elevator Large Space Car Lift Elevator Simple Operation Residential Car Elevator Large Space Car Lift Elevator

Large Image :  Simple Operation Residential Car Elevator Large Space Car Lift Elevator

Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE,ISO9001
Model Number: Car Elevator
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $7000-12000
Packaging Details: container
Delivery Time: 15~30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Set/ Year
Detailed Product Description
Name: Car Elevator Load: 3000~5000kg
Feature: Large Space Speed: 0.25~0.5m/S
Model: Car Lift Elevator Pit Depth: 1700mm
Type: Car Elevator Material: Stainless Steel
Product: Car Elevator
High Light:

residential car elevator

,

commercial car elevator

Large Space & Load Automobile Car Elevator with Compact, Simple Operation

Simple Operation Residential Car Elevator Large Space Car Lift Elevator

  • Name: High Speed Automobile Elevator
  • Feature: Large Space
  • Model: Car Elevator
  • Load: 3000~5000kg
  • Speed: 0.25~0.5m/S
  • Pit Depth: 1700mm

Large Space & Load Automobile Car Elevator with Compact, Simple Operation
Car elevator, the full use of the mature automotive upgrade technology, according to the special nature of the automotive product development and production. Using highly sophisticated variable voltage and variable frequency control technology to realize precise speed control and avoid the noise and vibration of the cabins for car force and traction system caused by increased load, maximum optimized characteristics of this a series of products.
Car elevator is beautiful, compact, simple operation, small floor space, the advantages of high space utilization.

Car elevator construction parameters

Load

(kg)

Speed

(m/s)

Car size Door size Hoistway size Pit deepth(mm) Overhead height(mm) Size of machine room Top leveling station
WxDxH(mm) WxD(mm) WxD(mm) WxDxH(mm)
3000 0.5 2700x5500x2200 2700x2200 4300x6150 1700 5100 4300x6150x3000 12
5000 0.25 2700x6000x2200 2700x2200 4300x6650 1700 5100 4300x6650x3300 5



Car elevator construction parameter:

Simple Operation Residential Car Elevator Large Space Car Lift Elevator 0



Simple Operation Residential Car Elevator Large Space Car Lift Elevator 1



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
