Electric Machine Room Less Elevator Mrl Gearless Elevator Noble Enjoyment

Electric Machine Room Less Elevator Mrl Gearless Elevator Noble Enjoyment
Electric Machine Room Less Elevator Mrl Gearless Elevator Noble Enjoyment

Large Image :  Electric Machine Room Less Elevator Mrl Gearless Elevator Noble Enjoyment

Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE,ISO9001
Model Number: Machine Roomless Elevator
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $7000-12000
Packaging Details: container
Delivery Time: 15~30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Set/ Year
Detailed Product Description
Name: Mrl Gearless Elevator Load: 450~1600kg
Speed: 1.0~2.5m/S Warranty: 1 Year
Pit Depth: 1400mm Overhead: 3900mm
Voltage: 380V/220V Material: Stainless Steel
Model: Mrl Gearless Elevator Product: Mrl Gearless Elevator
Highlight:

machine room less lift

,

6 passenger lift

Machine Roomless Good Quality Passenger Elevator with Low noise

Electric Machine Room Less Elevator Mrl Gearless Elevator Noble Enjoyment

High grade space,noble enjoyment

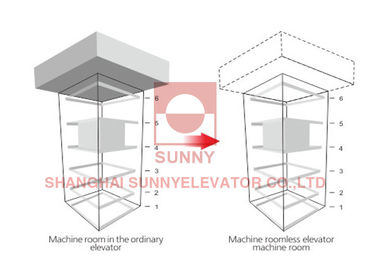

Machine roomless passenger elevator know the enviromental philosophy, saving energy, saving floor space, increase design freedom, can fully reflect the green humanitites. With the same load level compared to the machine room elevator, saving energy more 30% and 10% construction area. Elevator broke the traditional premise of the elevator machine room be ser for the modern construction limited space provides unlimited creation possible.

Optimized design space-creating
Low noise tiny vibration



Passenger Load Speed Car size Door size Shaft Pit depth Overhead height Stops Rise
kg m/s WxDxH(mm) WxH(mm) WxD(mm) P(mm) K(mm) Station HQ(m)
6 450 1.0 1100x1200x2400 700x2100 1900x1900 1400 3900 15 50
8 630 1.0 1100x1400x2400 800x2100 1900x2000 1400 3900 20 50
1.5 1100x1400x2400 800x2100 1900x2000 1700 4050 25 70
1.75 1100x1400x2400 800x2100 1900x2000 1750 4150 30 90
10 800 1.0 1350x1400x2400 800x2100 2050x2000 1400 3900 20 50
1.5 1350x1400x2400 800x2100 2050x2000 1700 4050 25 70
1.75 1350x1400x2400 800x2100 2050x2000 1750 4150 30 90
2.0 1350x1400x2400 800x2100 2200x2150 1800 4500 35 120
2.5 1350x1400x2400 800x2100 2200x2150 1950 4650 40 130
13 1000 1.0 1600x1500x2400 900x2100 2300x2050 1400 3900 20 50
1.5 1600x1500x2400 900x2100 2300x2050 1700 4050 25 70
1.75 1600x1500x2400 900x2100 2300x2050 1750 4150 30 90
2.0 1600x1500x2500 900x2100 2450x2200 1800 4500 35 120
2.5 1600x1500x2500 900x2100 2450x2200 1950 4650 40 130
16 1350 1.0 1950x1500x2400 1100x2100 3000x2150 1500 4000 20 50
1.5 1950x1500x2400 1100x2100 3000x2150 1700 4200 25 70
1.75 1950x1500x2400 1100x2100 3000x2150 1750 4300 30 90
2.0 1950x1500x2400 1100x2100 3150x2300 1800 4500 35 120
2.5 1950x1500x2400 1100x2100 3150x2300 1950 4650 40 130
21 1600 1.0 1950x1750x2400 1100x2100 3000x2350 1500 4000 20 50
1.5 1950x1750x2400 1100x2100 3000x2350 1700 4200 25 70
1.75 1950x1750x2400 1100x2100 3000x2350 1750 4300 30 90
2.0 1950x1750x2400 1100x2100 3150x2500 1800 4500 35 120
2.5 1950x1750x2400 1100x2100 3150x2500 1950 4650 40 130



Machine Roomless Elevator Construction Layout Drawing

Electric Machine Room Less Elevator Mrl Gearless Elevator Noble Enjoyment 0

Electric Machine Room Less Elevator Mrl Gearless Elevator Noble Enjoyment 1

Electric Machine Room Less Elevator Mrl Gearless Elevator Noble Enjoyment 2



Electric Machine Room Less Elevator Mrl Gearless Elevator Noble Enjoyment 3



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
