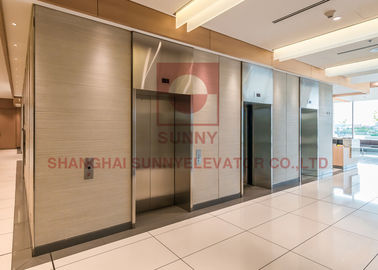

450kg Safe Smooth Operation Low Noise Small Passenger Elevator

450kg Safe Smooth Operation Low Noise Small Passenger Elevator
450kg Safe Smooth Operation Low Noise Small Passenger Elevator

Large Image :  450kg Safe Smooth Operation Low Noise Small Passenger Elevator

Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: 3C,CE
Model Number: Small Passenger Elevator
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $7000~12000
Packaging Details: container
Delivery Time: 15~30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Set/ Year
Detailed Product Description
Name: Small Passenger Elevator Load: 450-1600kg
Speed: 1.0-1.75m/s PP: 1500mm
Warranty: 1 Year Oh: 4500mm
Drive Type: AC Control System: VVVF Elevator Control System
Product: Small Passenger Elevator Model: Small Passenger Elevator
High Light:

commercial passenger elevators

,

high speed elevator

Low Noise Small Passenger Elevator Smooth Operation With Load 450 - 1600kg

450kg Safe Smooth Operation Low Noise Small Passenger Elevator

Small machine room for passenger elevator
Vaniety advantages of small machine room elevator
Space-creating fulfills great splendor
Our small machine room elevator brings about the more compact machine room layout through small traction machine and thin control cabinet. It fulfills small machine room. Compared with traditional elevator with machine room, it effective redyces machine room height and saves machine room area.
It greatly saves spaces.
It brings about the more compact construction layout. It reduces well area and machine room area. Machine room is exactly the same as well. It cuts down top-floor height and machine room height. It decreases influence of machine room to building outline. Traction machine, control cabient and speed governor etc. have been put in machine room. It is convenient for repair and safe for operation.

Load(kg) Person Speed(m/s) Car opening size Door open type Car net size Shaft inside dimension Machine room size
(DOxHH)mm (CWxCD)mm (SWxSD)mm PP OH (WxH)mm
450 6 1.0 800*2100 Center opening 1200*1000 1850*1700 1500 4500 1850*1700
1.5/1.75 1600
630 8 1.0 800*2100 Center opening 1400*1100 1950*1800 1500 4500 1950*1800
1.5/1.75 1600
800 10 1.0 800*2100 Center opening 1400*1350 2000*2050 1500 4500 2000*2050
1.5/1.75 1600
1000 13 1.0 900*2100 Center opening 1600*1500 2200*2200 1500 4500 2200*2200
1.5/1.75 1600
1250 16 1.0 1100*2100 Center opening 1800*1600 2400*2350 1500 4500 2400*2350
1.5/1.75 1600 4700
1350 18 1.0 1100*2100 Center opening 1800*1700 2400*2450 1500 4500 2400*2450
1.5/1.75 1600 4700
1600 21 1.0 1100*2100 Center opening 2000*1700 2600*2450 1500 4500 2600*2450
1.5/1.75 1600 4700


Small Machine Room Elevator Construction Layout Diagram
450kg Safe Smooth Operation Low Noise Small Passenger Elevator 0



450kg Safe Smooth Operation Low Noise Small Passenger Elevator 1450kg Safe Smooth Operation Low Noise Small Passenger Elevator 2450kg Safe Smooth Operation Low Noise Small Passenger Elevator 3450kg Safe Smooth Operation Low Noise Small Passenger Elevator 4


450kg Safe Smooth Operation Low Noise Small Passenger Elevator 5



About Us
SUNNY Elevator is always engaged in researching into, developing, manufacturing various building traffic and transport systems such as elevator, escalator, moving walk etc. Through the centurial trials and hardships, SUNNY Elevator never changes its advanced technology.
SUNNY Elevators safely operate in all kinds of high grade buildings in over 100 countries and regions. As time flies, it continues the rigorous and conscientious spirits of the German nation. SUNNY Elevator popular-fixes the most superb elevators and escalators all aver the world and opens the gate of the artistic elevator palace.
FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
