Hydraulic AC Servo Drive Residential Home Elevators Load 400kg

Hydraulic AC Servo Drive Residential Home Elevators Load 400kg
Hydraulic AC Servo Drive Residential Home Elevators Load 400kg Hydraulic AC Servo Drive Residential Home Elevators Load 400kg

Large Image :  Hydraulic AC Servo Drive Residential Home Elevators Load 400kg

Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE,ISO9001
Model Number: Home Elevator
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $7000-12000
Packaging Details: container
Delivery Time: 15~30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Set/ Year
Detailed Product Description
Name: Home Elevator Load: 320kg~400kg
Speed: 0.4m/s Pit: 300mm
Warranty: 1 Year Drive Mode: Hydraulic Drive
Elevator Type: Passenger Elevators Application: Home Usage
Type: Home Elevator Model: Home Elevator
High Light:

AC Servo Drive Residential Home Elevators

,

Load 400kg Residential Home Elevators

Hydraulic Drive House Residential Lift With Villa Passenger Home Elevator



German technology

1. Completely comply with the relative lift laws and regulations. also CE Certification passed.

2. AC servo drive door machine based upon the precise position control.

3. Permanent magnet synchronous motor.

4. An integrated system of the motor, servo driver and coder.

5. Home lift fulfills the independent closed loop control of the speed, position and torque.

6. Fully numeric control.

7. An optimized curve is automatically generated according to the setting of door speed and acceleration system.

8. The running curve of the door will not be influenced by the door load.

9. Novel synchronous door vane can integrate the car door lock.

10. The products are of the simple structure, convenient installation and adjustment and low running noise.

11. Home lift is applicable for various kinds of door-opening width and modes.



Drive mode Hydraulic drive
Capacity(kg) 320 400
Passenger 4 5
Car width depth(mm) 900*1200 1000*1200
Car height(mm) 2200
Hoistway width depth(mm) 1380*1450 1480*1450
Over head(mm) 2900
Pit(mm) 300
Door opening size 750*2000
Door opening way Hand-pulled outer opening
Speed 0.22/0.28m/s
Traveling height less than 12m
Mains 220V/380V

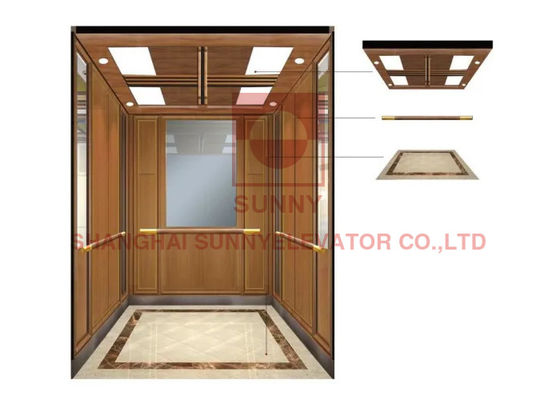

Hydraulic AC Servo Drive Residential Home Elevators Load 400kg 0

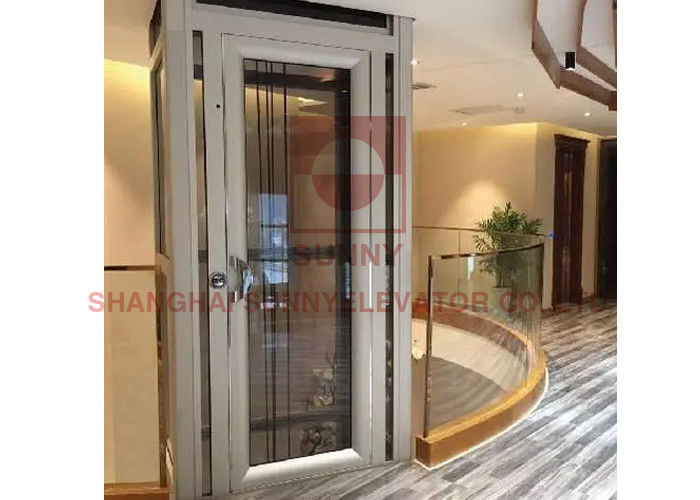

Hydraulic AC Servo Drive Residential Home Elevators Load 400kg 1



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
