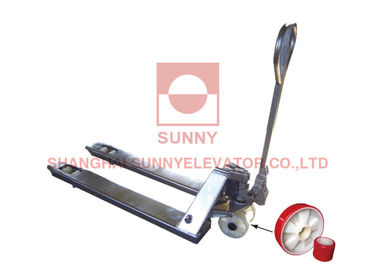

DC Motor 3 Ton Stainless Steel Manual Pallet Truck With DC Motor

Certification
China SHANGHAI SUNNY ELEVATOR CO.,LTD certification
China SHANGHAI SUNNY ELEVATOR CO.,LTD certification
With the arrival of the new year, I wish the company will expand its scale, develop its business, develop its business and expand its financial resources.

—— Melya

Insisting on Product Quality Management, Building Long-term Effective Mechanism of Quality. It's a pleasure to cooperate with you.

—— Yuilly

I'm Online Chat Now

DC Motor 3 Ton Stainless Steel Manual Pallet Truck With DC Motor

DC Motor 3 Ton Stainless Steel Manual Pallet Truck With DC Motor
DC Motor 3 Ton Stainless Steel Manual Pallet Truck With DC Motor DC Motor 3 Ton Stainless Steel Manual Pallet Truck With DC Motor

Large Image :  DC Motor 3 Ton Stainless Steel Manual Pallet Truck With DC Motor

Product Details:
Place of Origin: China
Brand Name: SUNNY
Model Number: SN-SHPT series
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $2000~7000
Packaging Details: container
Delivery Time: 15~30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Set/ Year
Detailed Product Description
Certification: CE/ISO9001 Name: Stainless Pallet Truck
Warranty: 12 Months After Shipping Power Souce: DC Motor
Type: Manual Pallet Truck Material: Stainless Steel
Model: Stainless Steel Manual Pallet Truck Product Name: Stainless Steel Manual Pallet Truck
Product: Stainless Steel Manual Pallet Truck
High Light:

3 Ton Manual Pallet Truck

,

Stainless Steel Hand Pallet Truck

2ton 2.5ton 3ton Stainless Steel Hand Pallet Truck Of Superior Quality



Stainless Hih Lift Scissor Truck


Model SN-SHPTS
Capacity 1000kgs 1500kgs 2200Ibs 3300Ibs
Fork width 540mm 680mm 21" 27"
Fork length 1150mm 45"
Lowered height 85mm 2-3/8"
Lifting height 800mm 31-1/2"
Load wheel Nylon / Polyurethane
Steering wheel Nylon / Polyurethane / Rubber
Weight 110kg 245Ibs

◆All parts are made of stainless including hydraulic pump,fork frame,handle,push rod,bearing,pin and bolt,etc.
◆For use in meat and other food industry,dairy canning and all areas where corrosive dcids and sailine are used.

DC Motor 3 Ton Stainless Steel Manual Pallet Truck With DC Motor 0

Stainless Pallet Truck


Model SN-PTS2000 SN-PTS3000
Capacity 2000kg 3000kg
Fork width 540/685mm 540/685mm
Fork length 1150/1220mm 1150/1220mm
Lowered height 85mm 85mm
Max.fork height 200mm 200mm
Format of front wheel single/Double
Material of the front wheel/oaded wheel Nylon/Rubber/Polyurethane
Weight 75kg 95kg



◆Material Inox304.
◆AIl parts are made of stainless including hydraulic pump,handle,push rod,bearing,pinand blot,etc.
◆For use in meat and other food industrial ,dairy canning and all areas where corrosive acids and saline solutions are used.
◆Rollers/Wheels:Nylon.
◆75mm loweredfork height available.
◆confirms to EN1757- 2.

DC Motor 3 Ton Stainless Steel Manual Pallet Truck With DC Motor 1



DC Motor 3 Ton Stainless Steel Manual Pallet Truck With DC Motor 2



DC Motor 3 Ton Stainless Steel Manual Pallet Truck With DC Motor 3



DC Motor 3 Ton Stainless Steel Manual Pallet Truck With DC Motor 4



DC Motor 3 Ton Stainless Steel Manual Pallet Truck With DC Motor 5



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
