Indoor / Outdoor Shopping Mall Escalator Comfortable With 35 Degree 5.5kw

Indoor / Outdoor Shopping Mall Escalator Comfortable With 35 Degree 5.5kw
Indoor / Outdoor Shopping Mall Escalator Comfortable With 35 Degree 5.5kw

Large Image :  Indoor / Outdoor Shopping Mall Escalator Comfortable With 35 Degree 5.5kw

Product Details:
Place of Origin: China
Brand Name: SUNNY
Certification: CE,ISO9001
Model Number: 35° Escalator
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $7000~12000
Packaging Details: container
Delivery Time: 15~30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Set/ Year
Detailed Product Description
Name: Escalator Speed: 0.5m/s
Traveling Height: 1000≤h≤3900mm Montor Power: 5.5kw
No.of Horizon: 2 Used: Indoor / Outdoor
Step Width: 600mm/ 800mm / 1000mm Usage: Shopping Mall
Application: Subway.airport.shopping Center Item Name: Shopping Mall Escalator
Product: Escalator Model: Escalator
High Light:

commercial escalator

,

passenger escalator

Auto Indoor / Outdoor High Speed Elevator Comfortable With 35 Degree

Indoor / Outdoor Shopping Mall Escalator Comfortable With 35 Degree 5.5kw



35 Degree Auto Indoor / Outdoor Escalator

****************************************
For detail information, please contact us.
****************************************



Technical Paraments

Model Travelling
height(mm)
Speed(m/s) Capacity(per./h) Inclination(°) No.of horizontal steps Montor power(Kw) A
(mm)
B
(mm)
D
(mm)
600/35° 1000≤H≤3900 0.5 3600 35 2 5.5 600 758 1140
4000≤H≤5300 2 7.5
5400≤H≤6000 2 11
800/35° 1000≤H≤3700 0.5 4800 35 2 5.5 800 958 1340
3800≤H≤5100 2 7.5
5400≤H≤6000 2 11
1000/35° 1000≤H≤3500 0.5 6000 35 2 5.5 1000 1158 1540
3600≤H≤4900 2 7.5
5000≤H≤6000 2 11


35° Escalator specifications

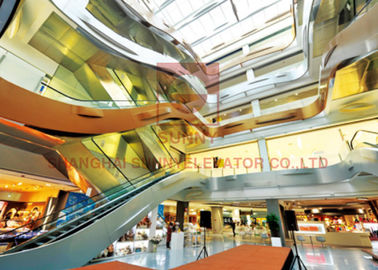

Indoor / Outdoor Shopping Mall Escalator Comfortable With 35 Degree 5.5kw 0

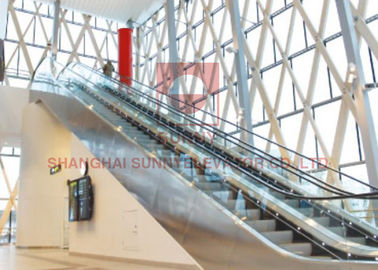

Indoor / Outdoor Shopping Mall Escalator Comfortable With 35 Degree 5.5kw 1



Indoor / Outdoor Shopping Mall Escalator Comfortable With 35 Degree 5.5kw 2



Indoor / Outdoor Shopping Mall Escalator Comfortable With 35 Degree 5.5kw 3



Indoor / Outdoor Shopping Mall Escalator Comfortable With 35 Degree 5.5kw 4



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
