Product Details:
Payment & Shipping Terms:
|
| Name: | Heavy Duty Escalator | Angle: | 12° |
|---|---|---|---|
| Application: | 8kw | FTravelling Height: | 1000≤H≤3800 |
| Warranty: | 12 Months After Shipping | Maximum Delivery Capacity: | 4800 |
| Product Name: | Escalator | Item Name: | Shopping Mall Escalator |
| Model: | Shopping Mall Escalator | Type: | Shopping Mall Escalator |
| Product: | Shopping Mall Escalator | ||
| High Light: | commercial escalator,passenger escalator |
||

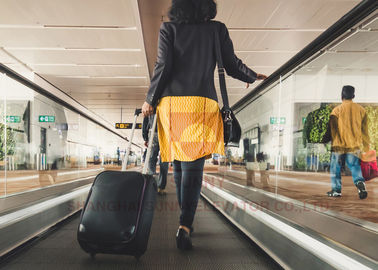

12° Heavy Duty Moving Walk Escalator For Public Transportation , Energy Saving
Compact structure
Fish abdomen beam and short pedal design reduces the spatial span.Compact design of rail pre-installed technology and mechanical system and handrail drive system leads to smaller size of moving walk, thus effectively saving space.
Energy-saving and endurance
The application of helical gear drive and parallel armrest drive minimizes the friction loss arising from the moving walk operation, not only saving energy while extending the service life of the whole machine.
| Model | Travelling height(mm) | Speed(m/s) | Maximum delivery capacity | Inclination | Power(kw) |
| 800/12° | 1000≤H≤3800 | 0.5 | 4800 | 12 | 8 |
| 3800≤H≤6000 | 11 | ||||
| 6000≤H≤7600 | 15 | ||||
| 7600≤H≤7800 | 2x11 | ||||
| 1000/12° | 1000≤H≤3000 | 0.5 | 6000 | 12 | 8 |
| 3000≤H≤4800 | 11 | ||||
| 4800≤H≤6000 | 15 | ||||
| 6000≤H≤6200 | 2x11 |
FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
